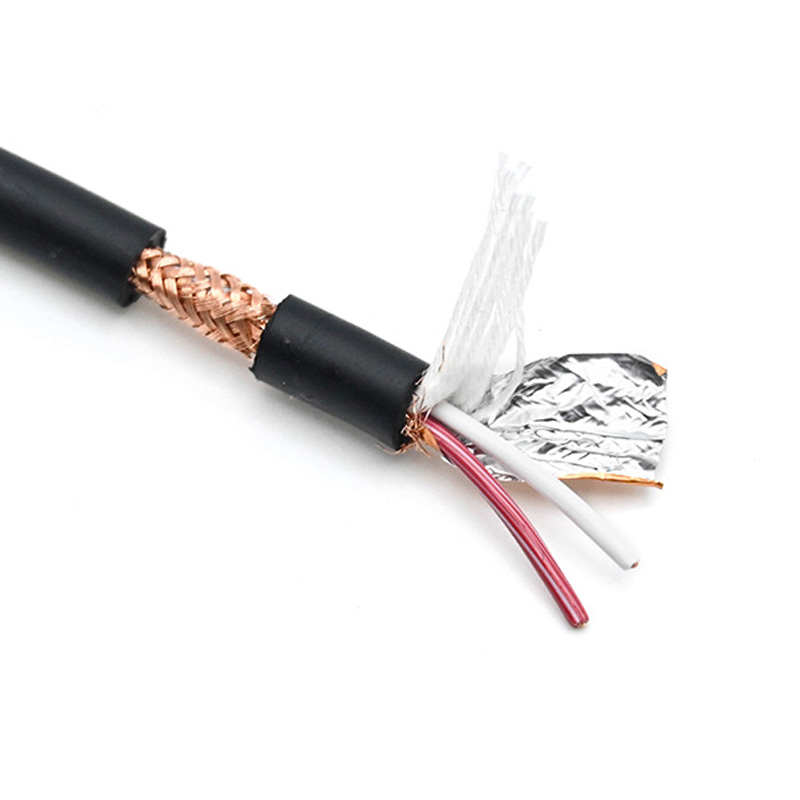

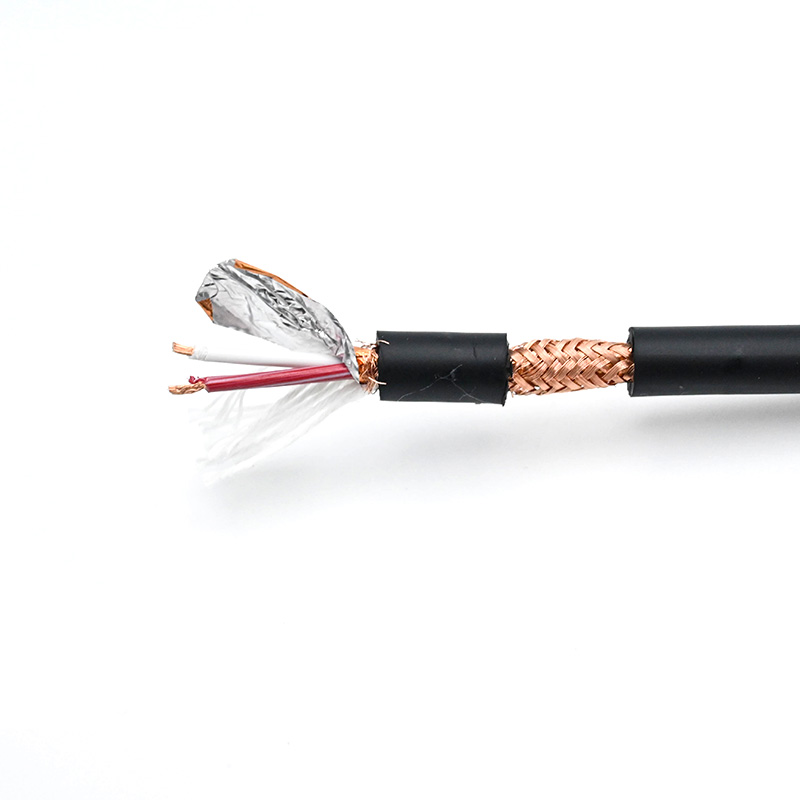

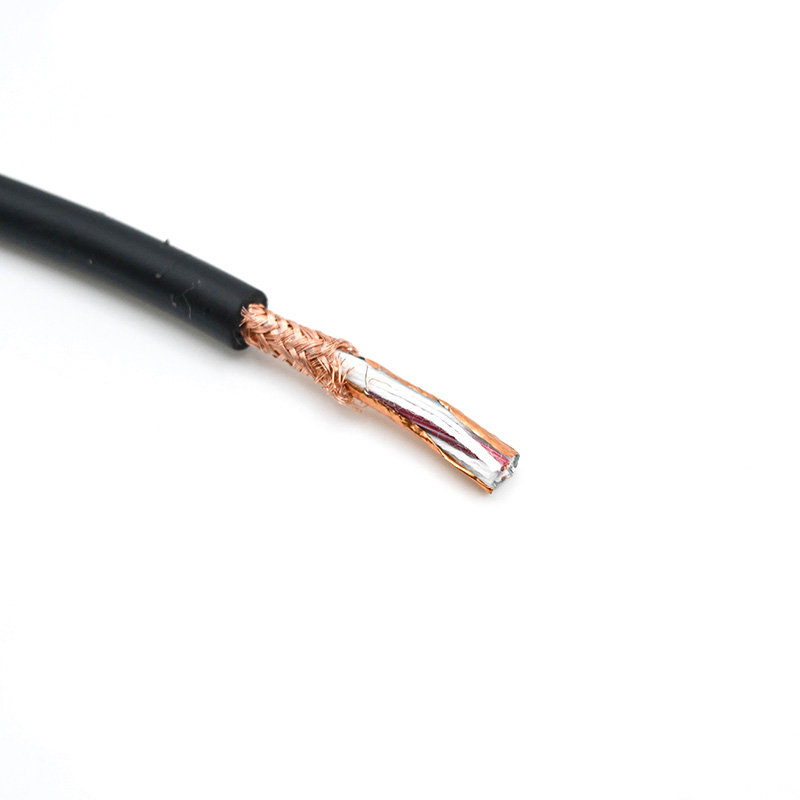

This double-shielded microphone XLR balanced audio cable is designed for professional stage and studio operations, as well as fixed installation.
Cable shielding: Braid shielding (96/0.1) Cable Conductor: 26AWG (27/0.1)
IEC 60958
Conductor: Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-6
Insulation: PVC
Shielding: Copper Braid > 95% + Al foil
Sheath: PVC (LSZH)
Core Colors: Red and White
Termperature Range: -30 ºC to +70 ºC (PVC)
Conductor Resistance, max : 75 Ohm/km
Insulation Resistance: 5 MOhm x km
| Part Number | Cable OD mm |
No. of Cores | Conductor Cross Sectional Area | Shielding | Applicaiton |
| TR-505 | 6.2 | 2 | 2x 27/0.1 | 96/0.1 Braid + Al Foil | Event Stage Audio and Lighting System Installation |
