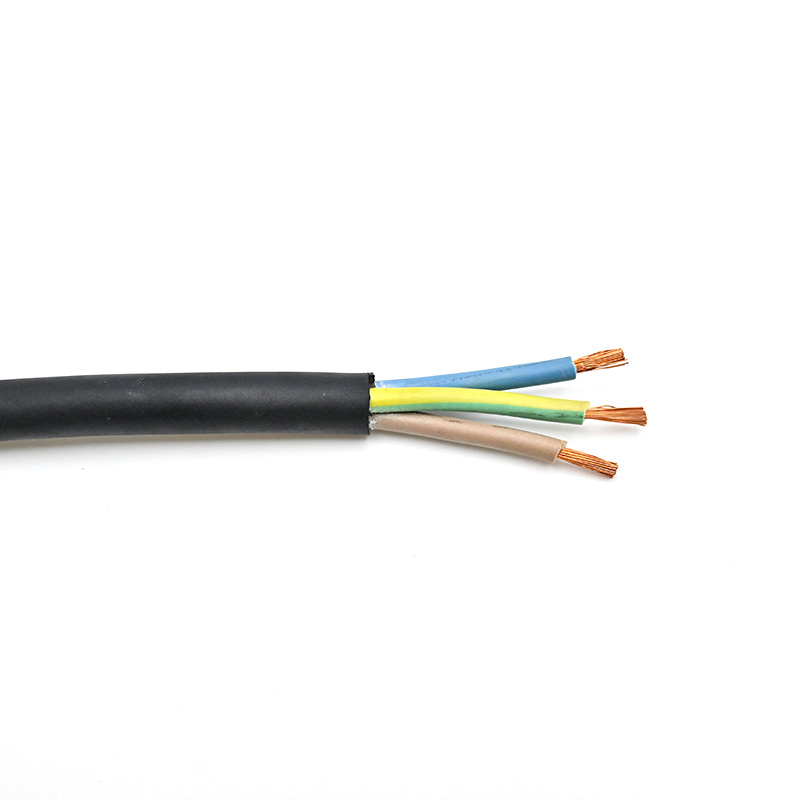

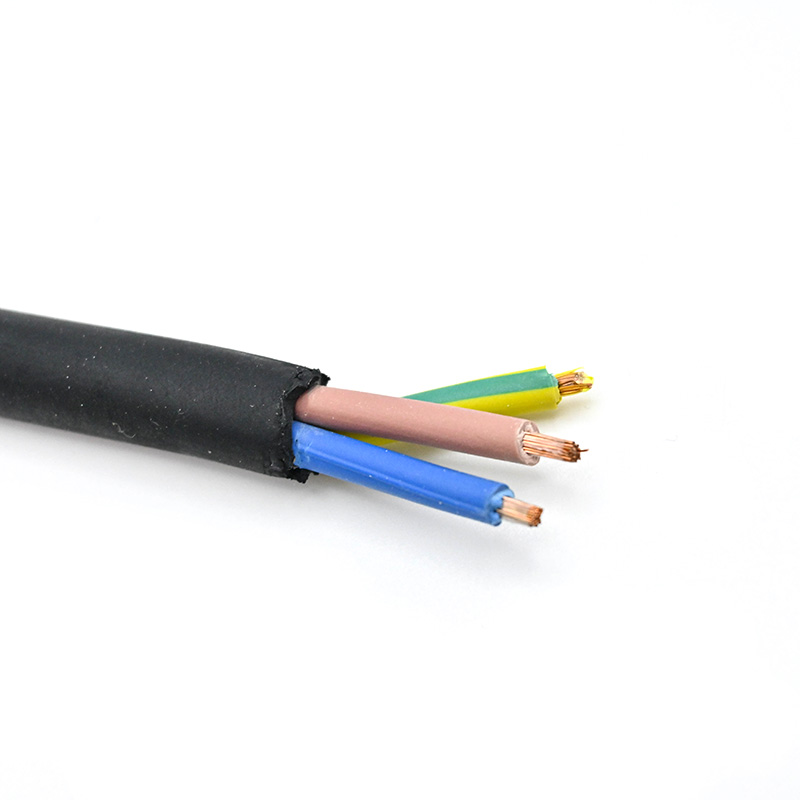

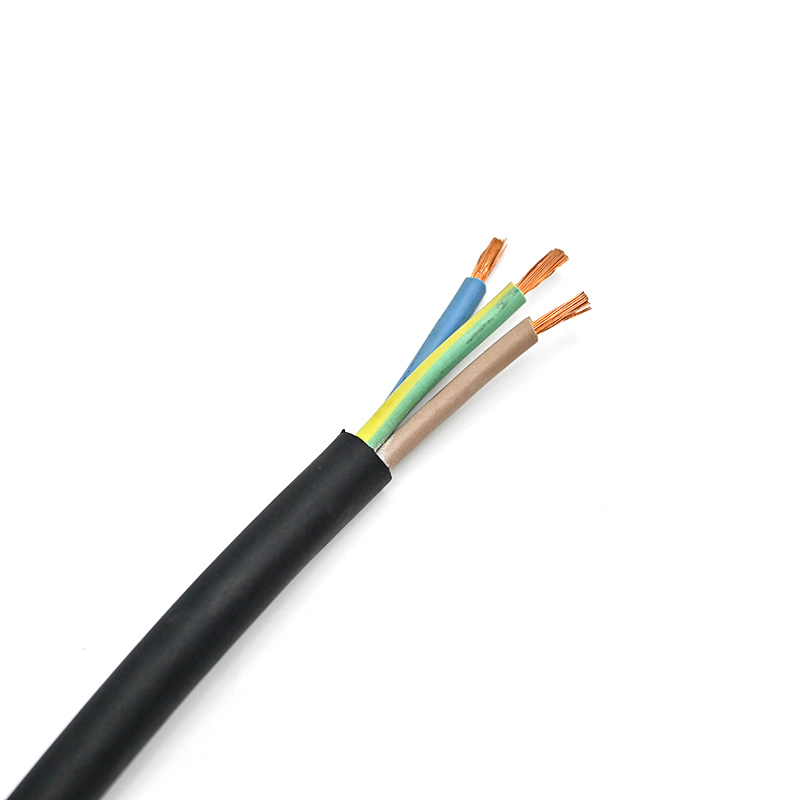

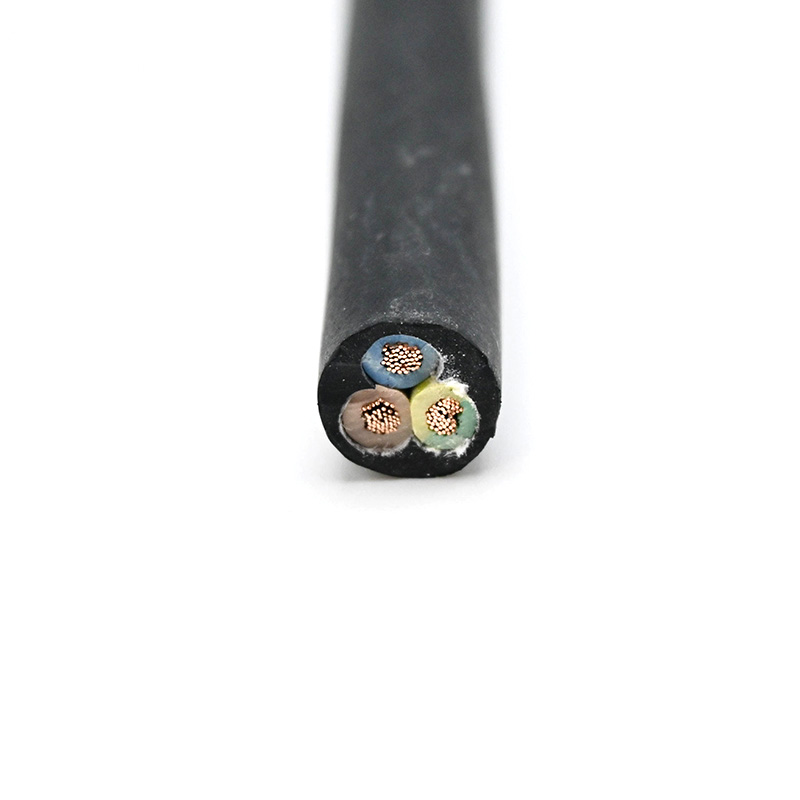

This rubber sheath cable are suitable for connecting electrical equipment with low mechanical stress in dry, damp and wet places as well in open air, for example as connection cable for horticulture tools.
This cable can be used in contact with fats and oils, furniture, decoration covering, partition walls and hollow spaces of building parts. The installation in hazardous area are allowed.
All requirements and tests methods acc to DIN VDE 0285-525-2-21/ EN 50525-2-21, IEC 60245-4
Conductor: Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-5 or Class-6
Insulation: EPR
Sheath:Â Chloroprene Rubber
Flexing Temperature Range: -10 ºC to +90 ºC
Static Termperature Range: -30 ºC to +90 ºC
Minimum Bending Radius: 6 x Overall diameter(flex); 4Â x Overall diameter(flex)
Working Voltage:Â 300/500V
Test Voltage: 2000V
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF OUTER SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| – | mm2 | mm | mm | kg/km |
| 2 | 0.75 | 0.8 | 5.7 – 7.4 | 80 |
| 3 | 0.75 | 0.9 | 6.2 – 8.1 | 95 |
| 4 | 0.75 | 0.9 | 6.8 – 8.8 | 105 |
| 2 | 1 | 0.9 | 6.1 – 8.0 | 95 |
| 3 | 1 | 0.9 | 6.5 – 8.5 | 115 |
| 4 | 1 | 0.9 | 7.1 – 9.2 | 142 |
| 3 | 1.5 | 1 | 8.6 – 11.0 | 105 |
| 4 | 1.5 | 1.1 | 9.5 – 12.2 | 129 |
| 5 | 1.5 | 1.1 | 10.5 – 13.5 | 153 |
