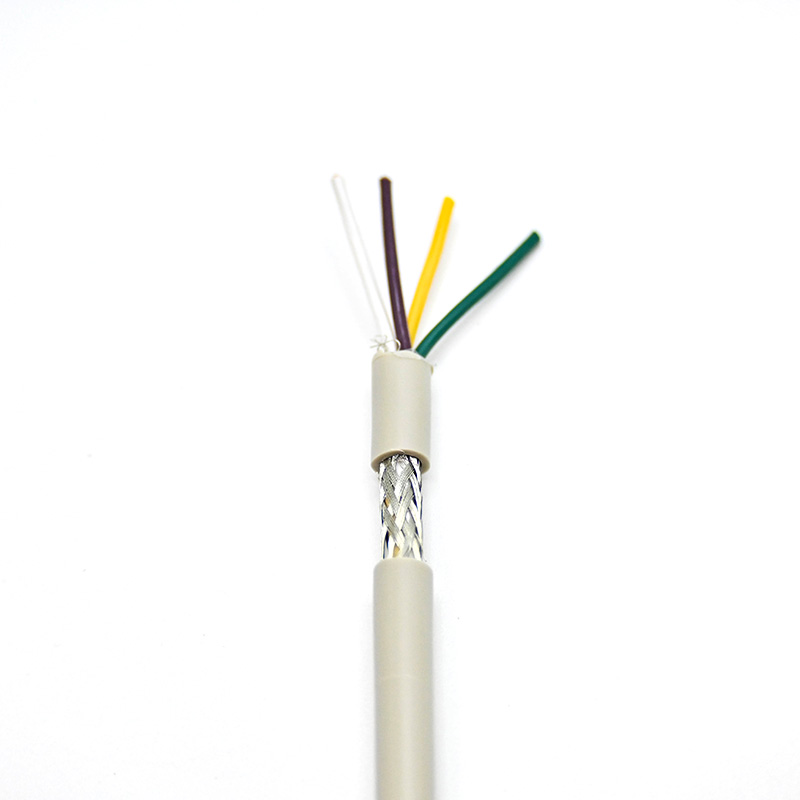

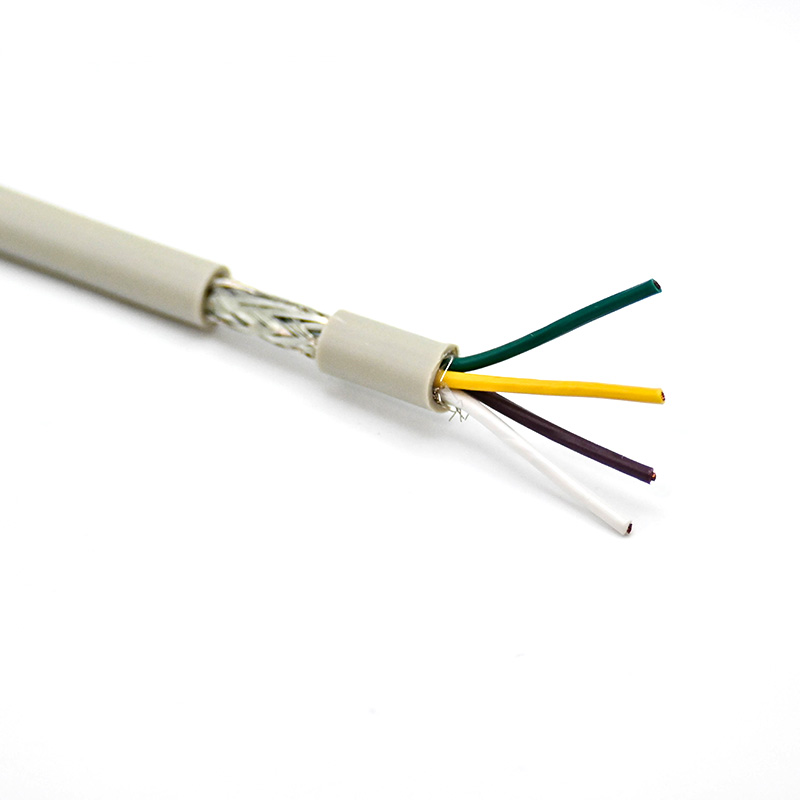

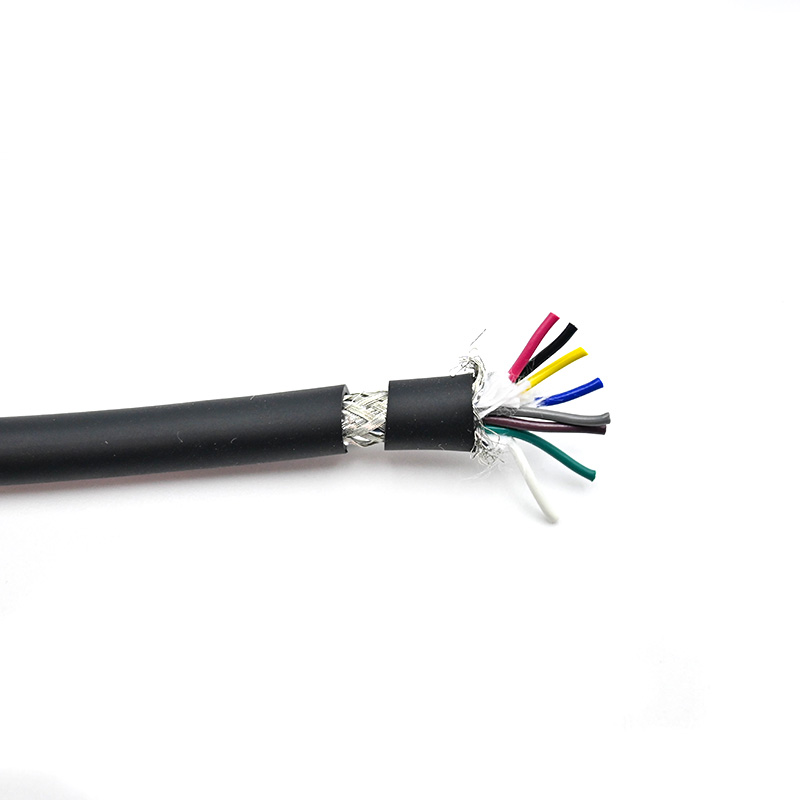

This shielded cable are used for flexible use with free movement without tensile stress or force movement in dry, moist and wet rooms but not suitable for open air.
This cable applies especially to such areas as tool making and machine industries as well as electronic, computer, measurement, and control sectors. The extremely small OD make suitable for miniature plugs.
All requirements and tests methods acc to DIN VDE 0812
Conductor: Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-5 or Class-6
Insulation: Special PVC Compound acc to VDE 0207-363-3 / EN 50363-3
Shield:Â Foil wrapping + tinned copper braided screen (85% coverage)
Drain wire: Tinned
Sheath: Special PVC Compound acc to VDE 0207-363-4-1 / EN 50363-4-1
Flexing Temperature Range: +5 ºC to +90 ºC
Static Termperature Range: -40 ºC to +80 ºC
Minimum Bending Radius Flexing: 10 x Overall diameter
Minimum Bending Radius Fix: 5 x Overall diameter
Capacitance at 800 Hz: Core/core 0.14mm² 120pF/m  0.25mm² 150pF/MÂ
Capacitance at 800 Hz: Core/Screen 0.14mm² 240pF/m  0.25mm² 270pF/MÂ
 Impedance: Approx 78 Ohm
Working Voltage:Â 350V 500V
Test Voltage: 1200V 2000V
Extensively oil resistant, oil/chemical resistance resistance
| AWG | No. of Cores x Nominal Cross Sectional Area  # x mm2 | Nominal Overall Diameter mm | Copper Weight kg / km | Cable Weight kg / km |
| 26(18/38) | 2X0.14 | 3.9 | 12 | 20 |
| 26(18/38) | 3X0.14 | 4.1 | 13 | 28 |
| 26(18/38) | 4X0.14 | 4.3 | 14.3 | 33 |
| 26(18/38) | 5X0.14 | 4.6 | 15.5 | 38 |
| 26(18/38) | 6X0.14 | 4.8 | 22 | 38 |
| 26(18/38) | 7X0.14 | 4.9 | 19 | 49 |
| 26(18/38) | 8X0.14 | 5.3 | 21.2 | 56 |
| 26(18/38) | 10X0.14 | 5.9 | 28.5 | 66 |
| 26(18/38) | 12X0.14 | 6.3 | 30.4 | 78 |
| 26(18/38) | 14X0.14 | 6.5 | 32 | 80 |
| 26(18/38) | 15X0.14 | 6.7 | 37.8 | 86 |
| 26(18/38) | 16X0.14 | 6.8 | 43 | 90 |
| 26(18/38) | 18X0.14 | 7.1 | 48.8 | 104 |
| 26(18/38) | 20X0.14 | 7.6 | 53.9 | 116 |
| 26(18/38) | 21X0.14 | 7.7 | 55.5 | 121 |
| 26(18/38) | 25X0.14 | 8.5 | 63 | 149 |
| 26(18/38) | 28X0,14 | 8.5 | 66.1 | 153 |
| 26(18/38) | 30X0.14 | 8.7 | 69 | 158 |
| 26(18/38) | 32X0.14 | 9 | 73.6 | 164 |
| 26(18/38) | 36X0.14 | 9.3 | 83 | 183 |
| 26(18/38) | 40X0.14 | 9.7 | 87.5 | 210 |
| 26(18/38) | 44X0.14 | 10.3 | 110.5 | 225 |
| 26(18/38) | 50X0.14 | 11.1 | 122.5 | 253 |
| 24(14/34) | 2X0.25 | 4.5 | 16 | 32 |
| 24(14/34) | 3X0.25 | 4.7 | 21 | 37 |
| 24(14/34) | 4X0.25 | 5.1 | 24 | 41.3 |
| 24(14/34) | 5X0.25 | 5.4 | 29 | 51.2 |
| 24(14/34) | 6X0.25 | 5.8 | 30 | 58 |
| 24(14/34) | 7X0.25 | 5.8 | 37 | 65 |
| 24(14/34) | 8X0.25 | 6.5 | 42 | 73 |
| 24(14/34) | 10X0.25 | 7.5 | 46 | 82 |
| 24(14/34) | 12X0.25 | 7.7 | 59 | 145 |
| 24(14/34) | 14X0.25 | 8.1 | 59 | 99 |
| 24(14/34) | 15X0.25 | 8.4 | 61 | 111 |
| 24(14/34) | 16X0.25 | 8.4 | 64 | 124 |
| 24(14/34) | 18X0.25 | 8.8 | 83 | 143 |
| 24(14/34) | 20X0.25 | 9.1 | 88 | 152.3 |
| 24(14/34) | 21X0.25 | 9.3 | 93 | 161 |
| 24(14/34) | 25X0.25 | 10.3 | 114 | 172 |
| 24(14/34) | 28X0.25 | 10.8 | 126 | 181.1 |
| 24(14/34) | 30X0.25 | 11.1 | 132 | 189 |
| 24(14/34) | 32X0.25 | 11.4 | 138 | 203 |
| 24(14/34) | 36X0.25 | 11.8 | 148 | 220 |
| 24(14/34) | 40X0.25 | 12.3 | 157 | 248 |
| 24(14/34) | 44X0.25 | 13.3 | 165 | 292.1 |
| 24(14/34) | 50X0.25 | 13.9 | 178 | 318 |
| 24(14/34) | 61X0.25 | 14.6 | 205 | 365.2 |
| 22(7/30) | 2X0.34 | 4.9 | 21 | 37 |
| 22(7/30) | 3X0.34 | 5.1 | 27 | 49 |
| 22(7/30) | 4X0.34 | 5.5 | 33 | 59 |
| 22(7/30) | 5X0.34 | 6.2 | 36 | 66 |
| 22(7/30) | 6X0.34 | 6.8 | 36 | 64 |
| 22(7/30) | 7X0.34 | 6.8 | 46 | 83 |
| 22(7/30) | 8X0.34 | 7.3 | 52 | 94 |
| 22(7/30) | 10X0.34 | 8.3 | 74 | 129.2 |
| 22(7/30) | 12X0.34 | 8.5 | 80 | 142 |
| 22(7/30) | 14XO.34 | 8.9 | 86 | 154 |
| 22(7/30) | 15XO.34 | 9.2 | 90 | 155 |
| 22(7/30) | 16X0.34 | 9.4 | 94 | 160 |
| 22(7/30) | 18X0.34 | 9.8 | 103 | 173 |
| 22(7/30) | 20X0.34 | 10.2 | 112 | 192 |
| 22(7/30) | 21X0.34 | 10.3 | 116 | 199.2 |
| 22(7/30) | 25X0.34 | 11.9 | 135 | 259 |
| 22(7/30) | 28X0.34 | 12 | 153 | 280 |
| 22(7/30) | 30X0.34 | 12.3 | 159 | 291.1 |
| 22(7/30) | 32X0.34 | 13 | 165 | 305 |
| 22(7/30) | 36X0.34 | 13.4 | 179 | 331 |
| 22(7/30) | 40X0.34 | 13.9 | 200 | 365 |
| 22(7/30) | 44X0.34 | 14.9 | 215 | 314.2 |
| 22(7/30) | 50X0.34 | 15.9 | 235 | 431 |
| 20(16/32) | 2X0.5 | 5.5 | 29 | 54 |
| 20(16/32) | 3X0.5 | 5.8 | 38 | 67 |
| 20(16/32) | 4X0.5 | 6.5 | 43 | 77 |
| 20(16/32) | 5X0.5 | 7 | 51 | 90 |
| 20(16/32) | 6X0.5 | 7.8 | 59 | 104 |
| 20(16/32) | 7X0.5 | 7.8 | 65 | 112 |
| 20(16/32) | 8X0.5 | 8.3 | 70 | 135 |
| 20(16/32) | 10X0.5 | 9.5 | 88 | 160 |
| 20(16/32) | 12X0.5 | 9.8 | 99 | 177 |
| 20(16/32) | 18X0.5 | 11.8 | 134 | 239 |
| 20(16/32) | 20X0.5 | 12.2 | 149 | 276 |
| 20(16/32) | 25X0.5 | 14 | 211 | 352 |
| 20(16/32) | 30X0.5 | 14.5 | 230 | 397 |
| 18(24/32) | 2X0.75 | 5.9 | 38 | 64 |
| 18(24/32) | 3X0.75 | 6.4 | 49 | 76 |
| 18(24/32) | 4X0.75 | 7 | 58 | 92 |
| 18(24/32) | 5X0.75 | 7.8 | 67 | 109 |
| 18(24/32) | 7X0.75 | 8.4 | 100 | 156 |
| 18(24/32) | 10X0.75 | 10.3 | 130 | 187 |
| 18(24/32) | 12X0.75 | 11 | 154 | 218 |
| 18(24/32) | 18X0.75 | 13 | 195 | 327 |
| 18(24/32) | 25X0.75 | 15.6 | 280 | 454 |
| 18(24/32) | 30X0.75 | 16.2 | 312 | 486 |
| 17(32/32) | 2X1.0 | 6.5 | 43 | 72 |
| 17(32/32) | 3X1.0 | 6.9 | 56 | 90 |
| 17(32/32) | 4X1.0 | 7.6 | 68 | 109 |
| 17(32/32) | 5X1.0 | 8.3 | 79 | 126 |
| 17(32/32) | 7X1.0 | 9 | 118 | 171 |
| 17(32/32) | 10X1.0 | 11.5 | 140 | 228 |
| 17(32/32) | 12X1.0 | 11.9 | 168 | 259 |
| 17(32/32) | 18X1.0 | 14 | 252 | 389 |
| 17(32/32) | 25X1.0 | 16.7 | 335 | 517 |
| 16(30/30) | 2X1.5 | 7.6 | 58 | 90 |
| 16(30/30) | 3X1.5 | 8 | 74 | 115 |
| 16(30/30) | 4X1.5 | 8.7 | 108 | 153 |
| 16(30/30) | 5X1.5 | 9.5 | 129 | 176 |
| 16(30/30) | 7X1.5 | 10.3 | 164 | 220 |
| 16(30/30) | 12X1.5 | 13.9 | 254 | 376 |
| 16(30/30) | 18X1.5 | 16.6 | 350 | 519 |
| 16(30/30) | 25X1.5 | 20 | 550 | 901 |
