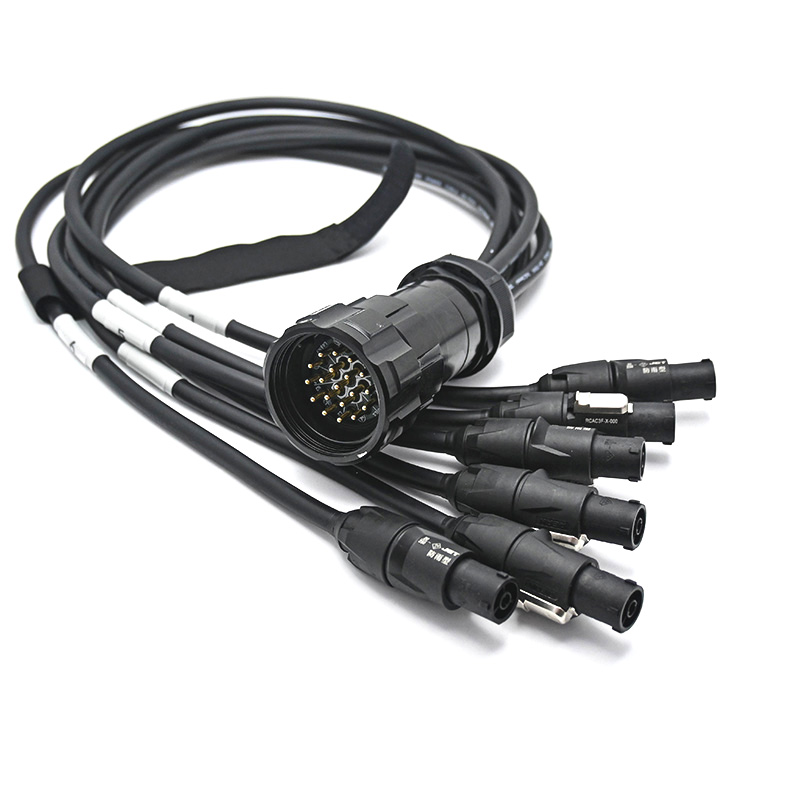

This socapex breakout cable is combine with a male socapex connector and 6 pcs cables with powercon/CEE/EDISON/Striped end. It is used for lighting power distro. Normally, cable length range from 1m to 1.5m.
Plug/end Terminal Side A
19 Pin Socapex Male
Plug/end Terminal Side B
Powercon Blue, Truecon Female, NEMA 5-15R, NEMA 5-20R, AU Piggback, Bare end
Type
Socapex Power Cable
Approval
CE, RoHS, TUV, ETL
Standard Length
1m, 1.5m, 2m or others
Cable Size
1.5mm², 2.5mm²; 12awg, 14awg
Current Rated
16amp or 20amp
Cable Type
H05VV5-F, H07RM-F, SOOW
