This digital audio cable meets the AES-3 EBU standards. PVC Sheath, XLPE insulation.
IEC 60958 ; AES-3-4-2009
Conductor: 26AWG, Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-6
Insulation: XLPE

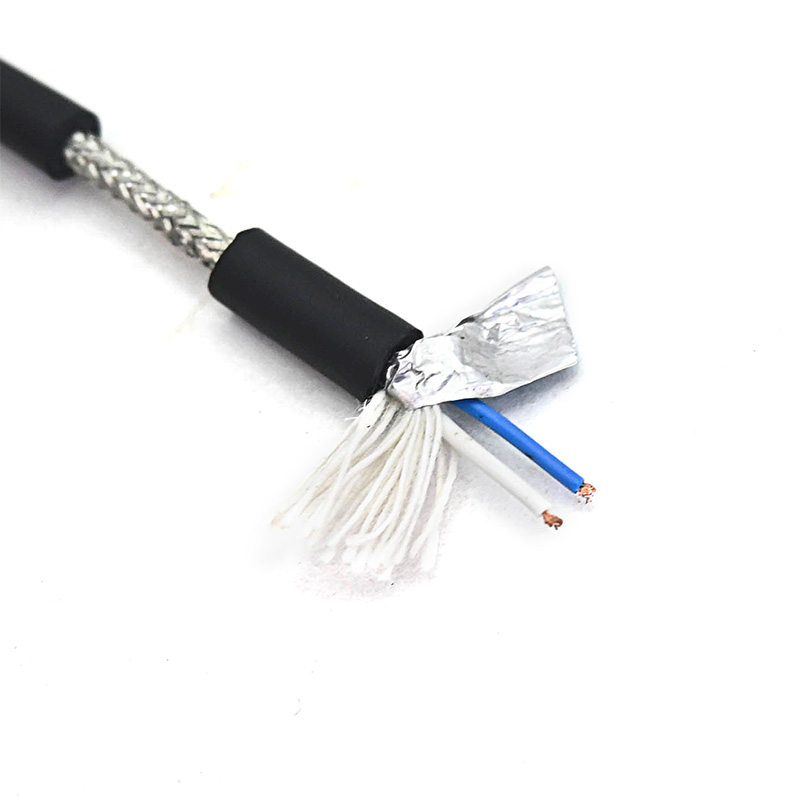

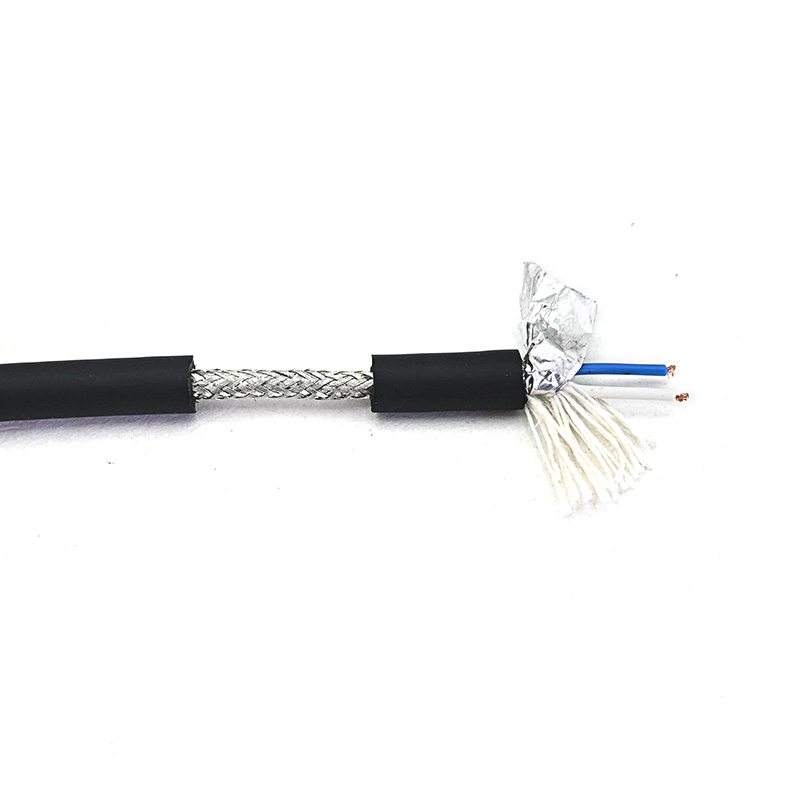

Shielding: Tinned Copper Braid > 95% + Al foil
Sheath: PVC
Core Colors: Blue and White
Termperature Range: -30 ºC to +60ºC (PVC)
AES-3 Transmisson Distance: 200m
Conductor Resistance: 5 MOhm x km
Capacitance(pF/m): C1-56 C0-93
Imepdance: 120 Ohm
| Part Number | Cable OD mm | No. of Cores | Conductor Cross Sectional Area | Shielding | Applicaiton |
| TR-490 | 6 | 2 | 2x 25/0.08 | 80/0.1 Braid + Al Foil | Event Stage Digital Audio and Lighting System Installation |
