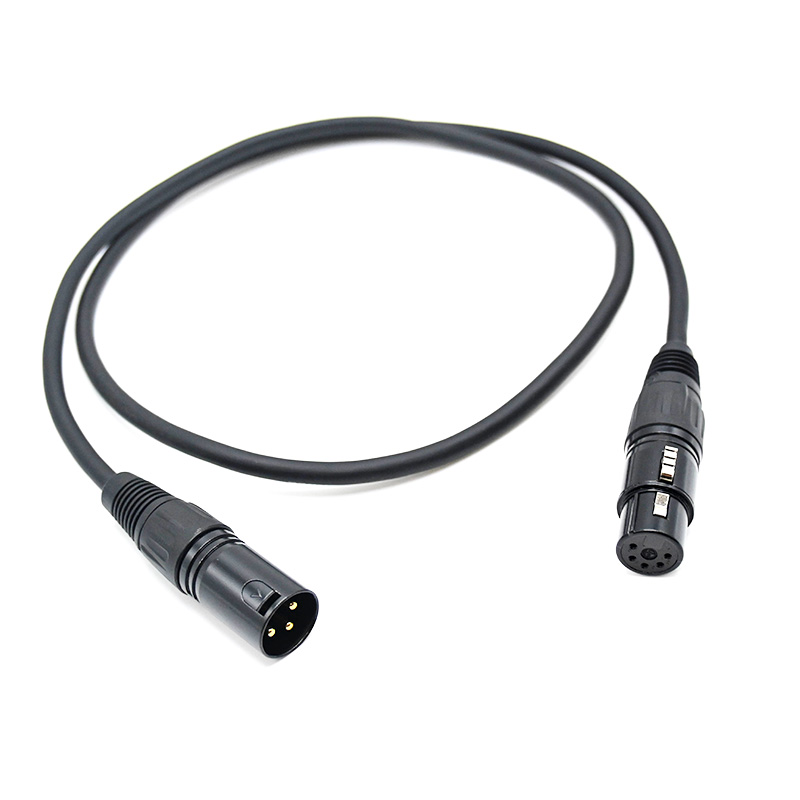

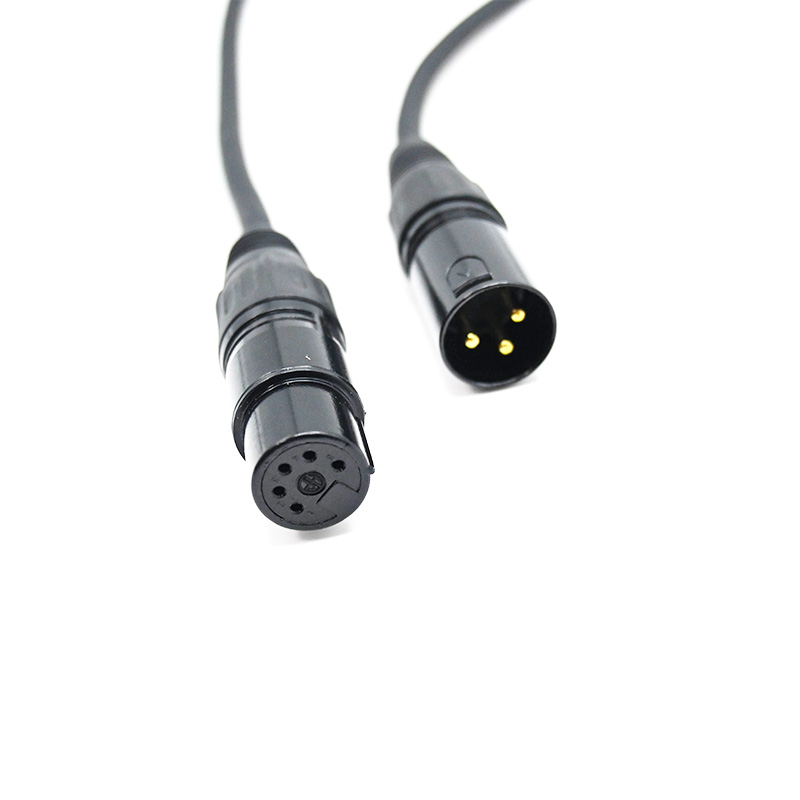

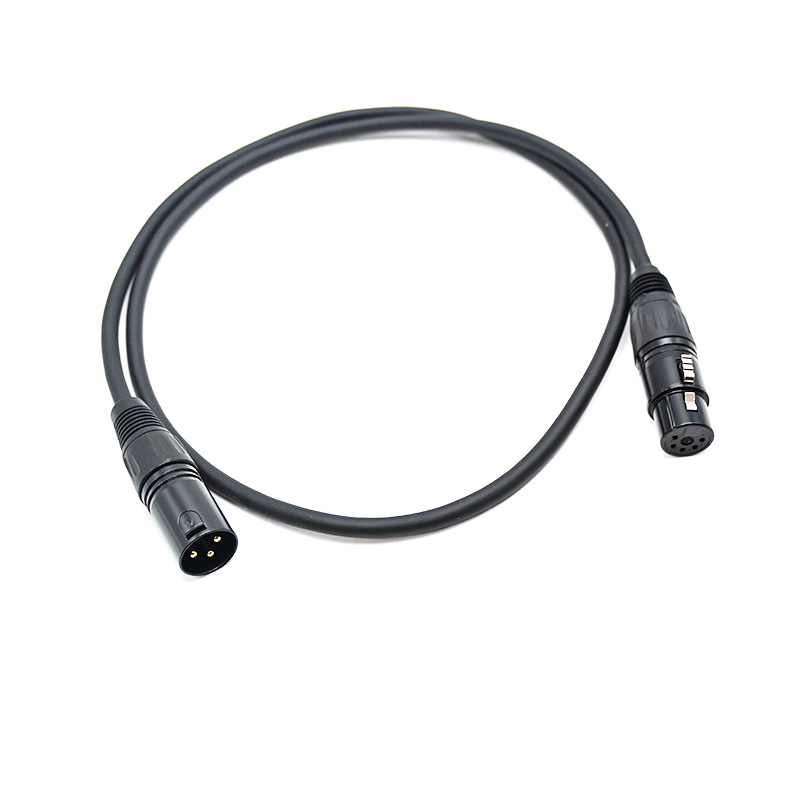

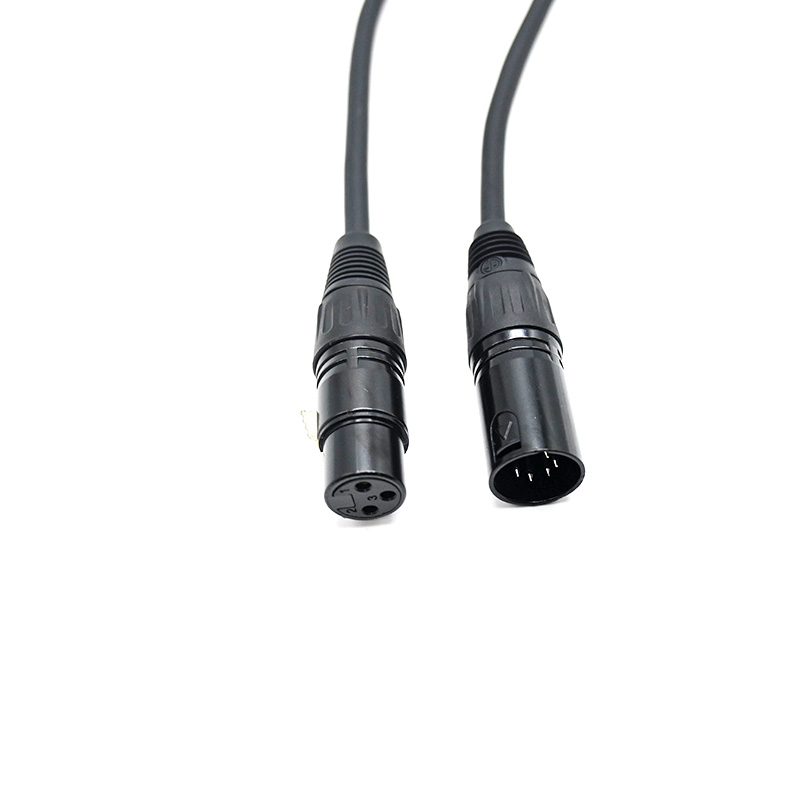

Our DMX Turnover cables have 2 types. 3pin male to 5pin female, 3pin female to 5pin male. These cables are used to bridge the incompatibility between 3-pin DMX and 5-pin DMX devices.
Plug/end Terminal Side A:
Plug/end Terminal Side B:
Standard
Type
IP Rated
Characteristic Impedance
Contact Surface
Operation Temperature
Approval:
Standard Length:
Signal Cable Size:
Signal Cable Shield:
Cable Type:
DMX Connector 3 Pin Male (5pin female)
DMX Connector 5 Pin Female (3pin male)
IEC 60799
DMX512 & AES/EBU Patch Cable
IP65
100-120 Ohm (110 Ohm option)
Sliver or Gold
-25℃~75℃
CE, RoHS, VDE
1m, 1.5m, 2m, 3m, 5m, 8m, 10m
0.3mm², 0.5mm²; 20awg, 22awg
Double shielded, foil+braid
PVC/LSZH/PUR Shield Cables
