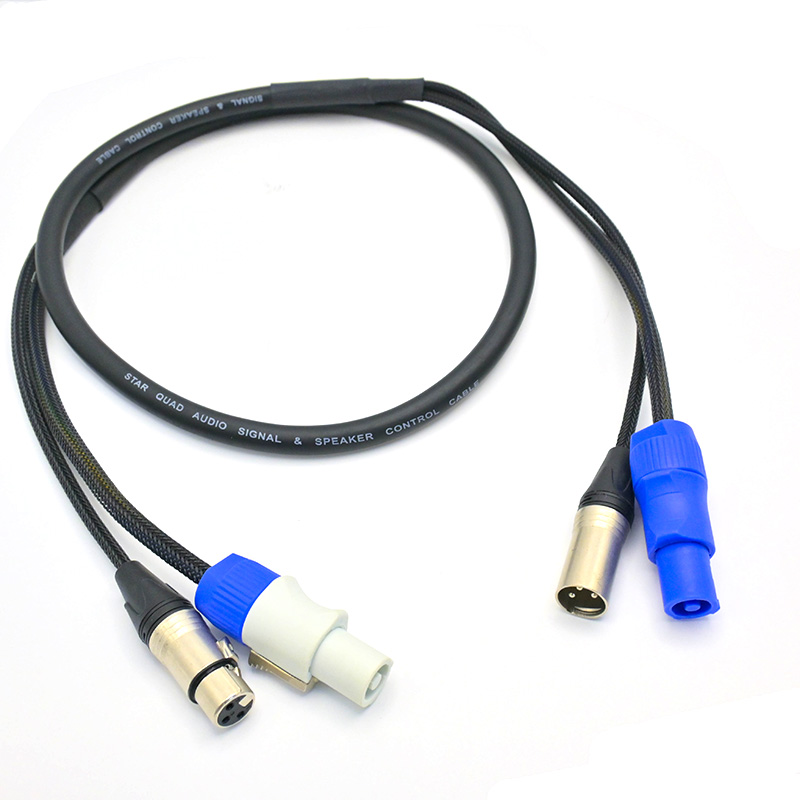

3 Pin DMX Powercon Combo Cable

This 3 pin dmx xlr powercon combo cable is widely use for professional lighting audio system device which with powercon, 3 pin dmx xlr interface.

It can replace any set of individual powercon cable and 3 pin dmx cable.

Description

The 3 Pin DMX Powercon Combo Cable integrates a 3-pin DMX XLR cable with an AC Powercon cable. This loom is suitable for various event and performance settings such as churches, theaters, professional touring, weddings, and more.

This power and dmx extension cable can make your stage simpler and cleaner which is favored by lighting engineers, AV rental companies, event managers, and stage managers.

Technical Characteristics

Plug/end Terminal Side A

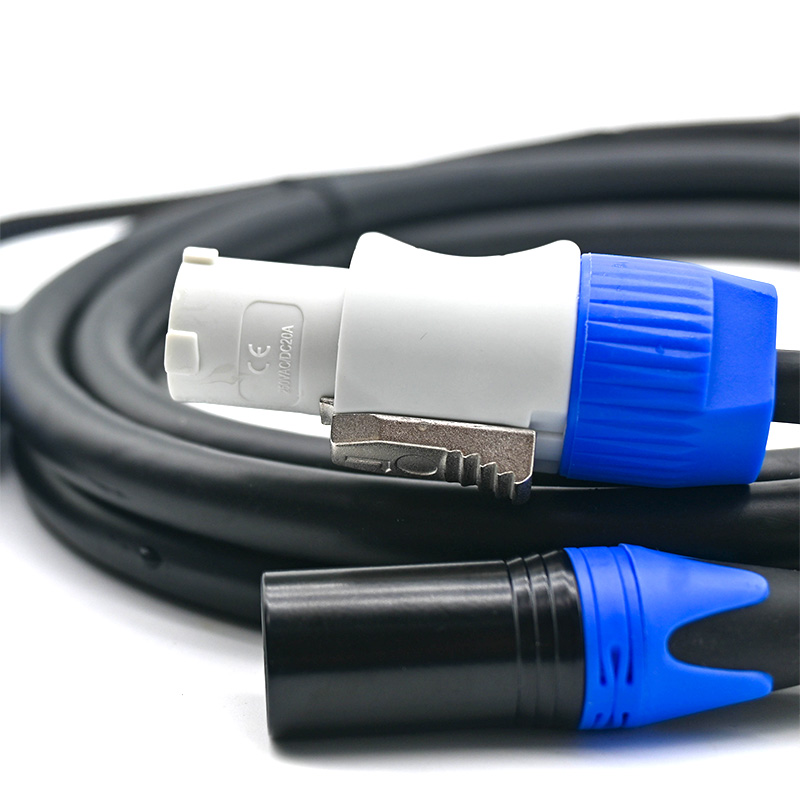

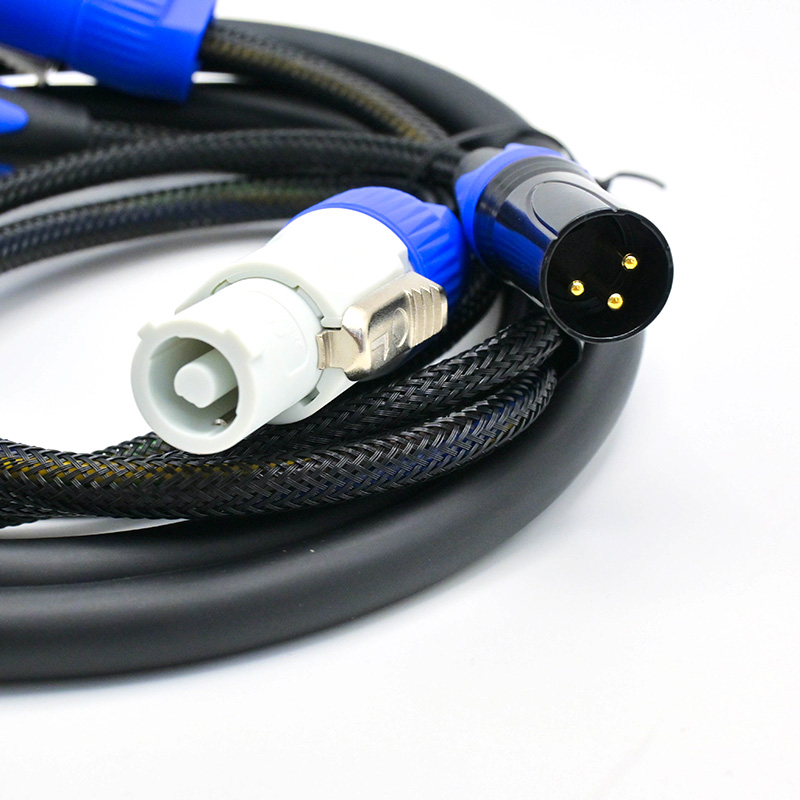

3 Pin XLR Connector Male + Powercon White

Plug/end Terminal Side B

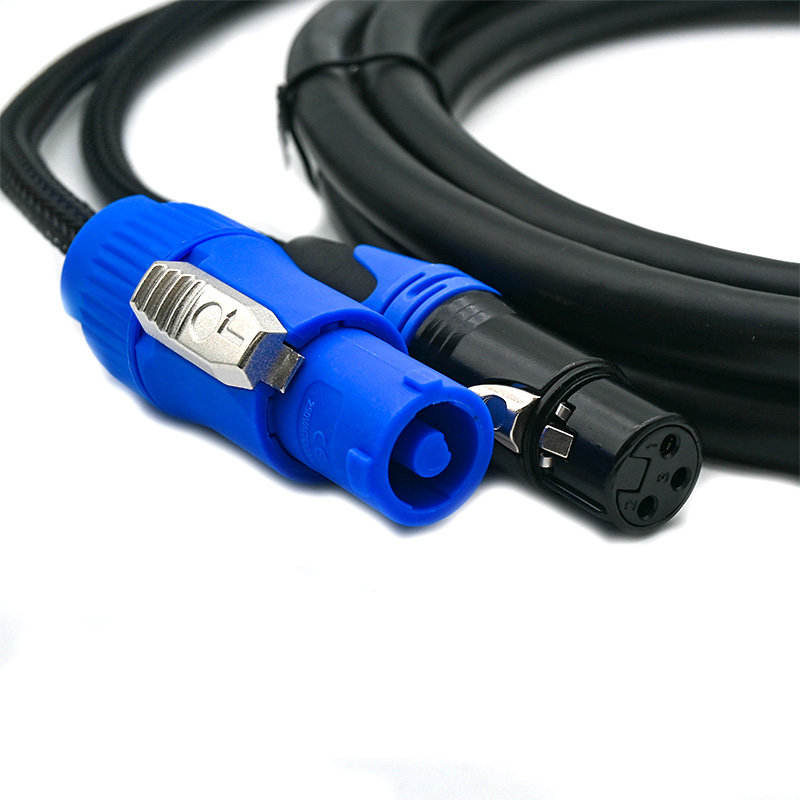

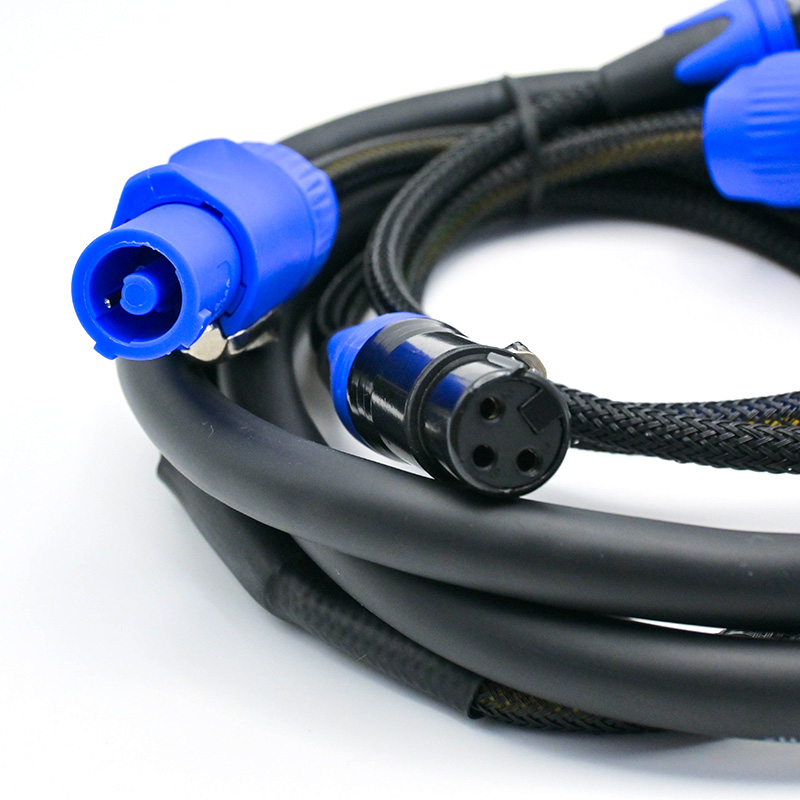

3 Pin XLR Connector Female + Powercon Blue

Standard

IEC 60799

Type

Lighting Cable

Characteristic Impedance

100 – 120 Ohm

Contactor Option

Neutrik, Seetronic or others

Operation Temperature

-25℃~75℃

Approval

CE Rohs

Standard Length

1m, 1.5m, 2m, 3m, 5m, 8m, 10m, 20m, 30m

Cable Type

TR503 / TR504 Power Signal Hybrid Cable

Feature

Helpful for the speed of lighting or speaker system setup and teardown
Excellent EMF Shielded, would not be effected at all by electromagnetic interference
Low capacitance twisted conductor, reduce the noise
Characteristic impedance is 100-120 Ω, signal data transmission is stable
Powercon compatible input blue and output white connections
Heavy Duty power wire 14AWG 2.5mm² for selection
Signal cable with a single neatly wrapped or flexible pvc sheath

Want to know more about this cable? - Please check this blog.

Application

3 Pin DMX Powercon Combo Cable can be used for many indoor lighting and audio systems.

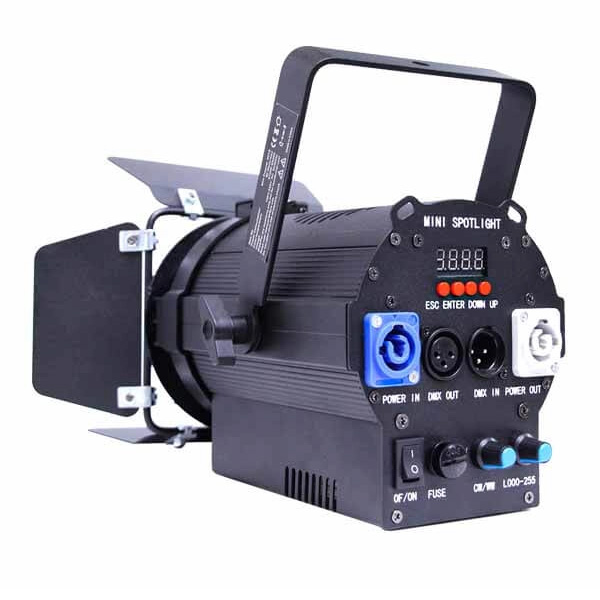

It can connect stage DJ moving head lights, LED bars, beam lighting, and Par lights.

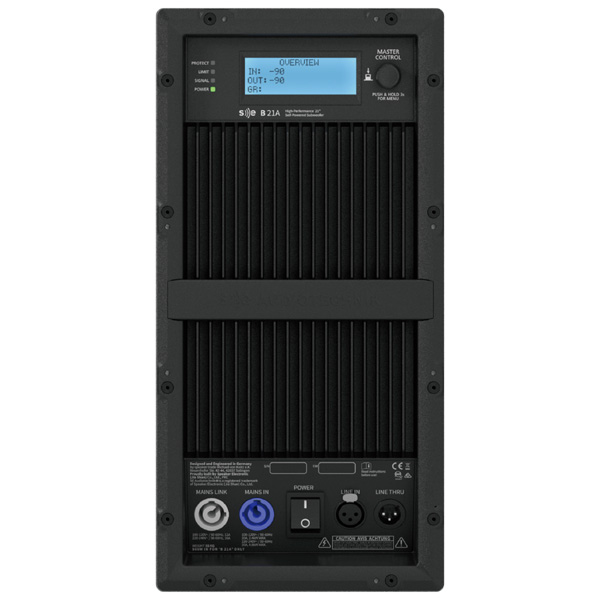

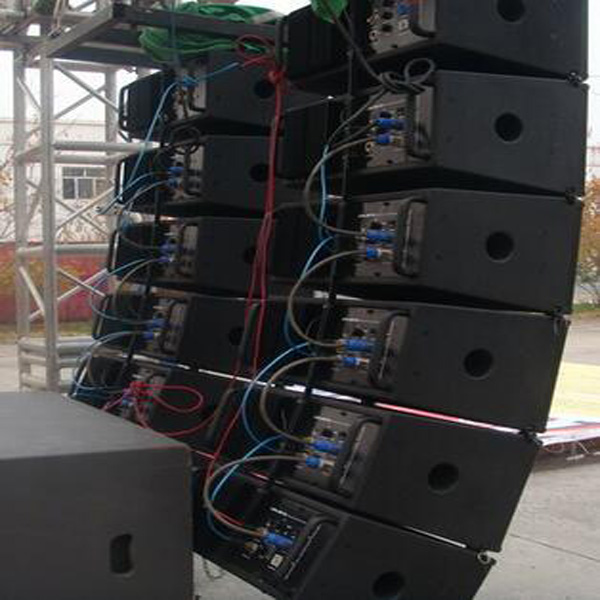

It can also link powered monitor speakers, subwoofers, main speakers, and loudspeakers.
