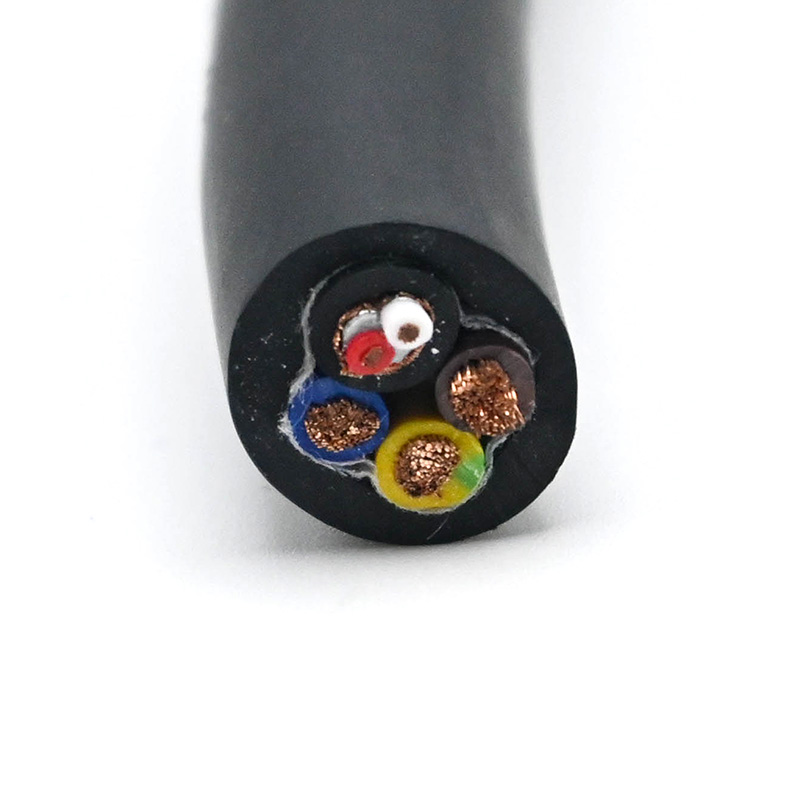

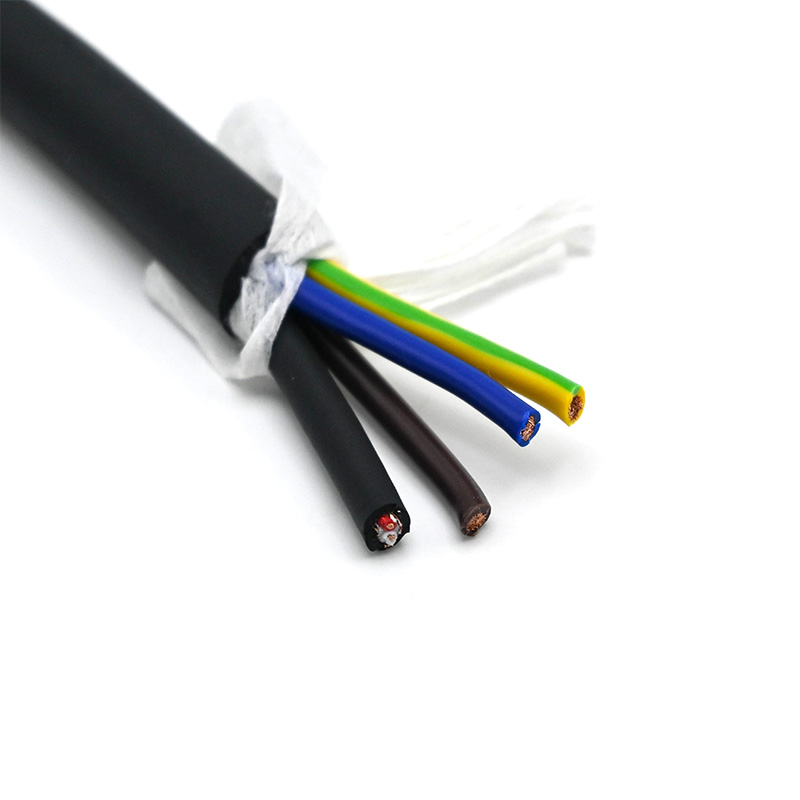

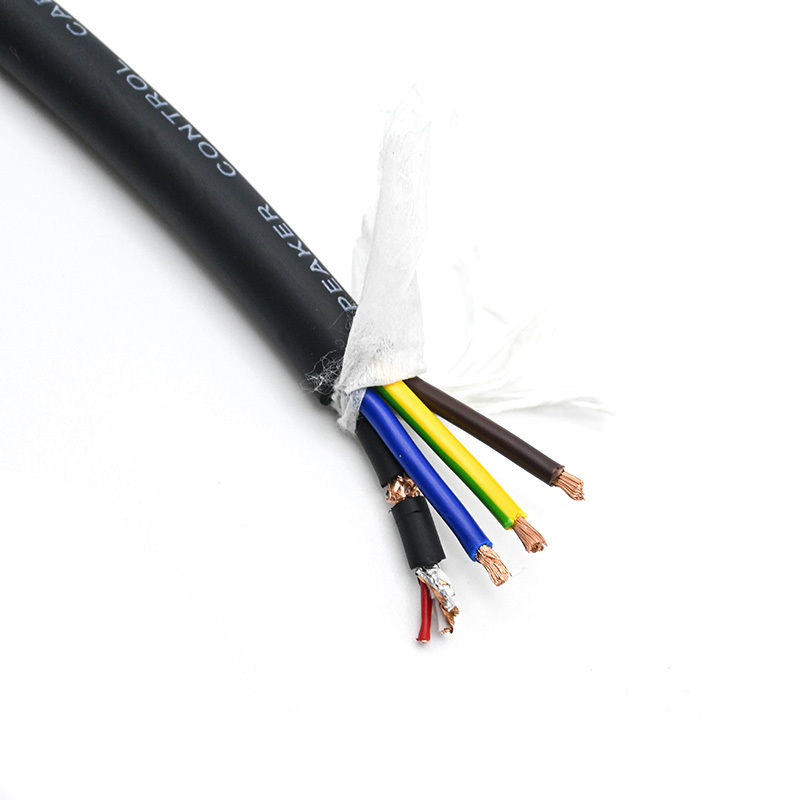

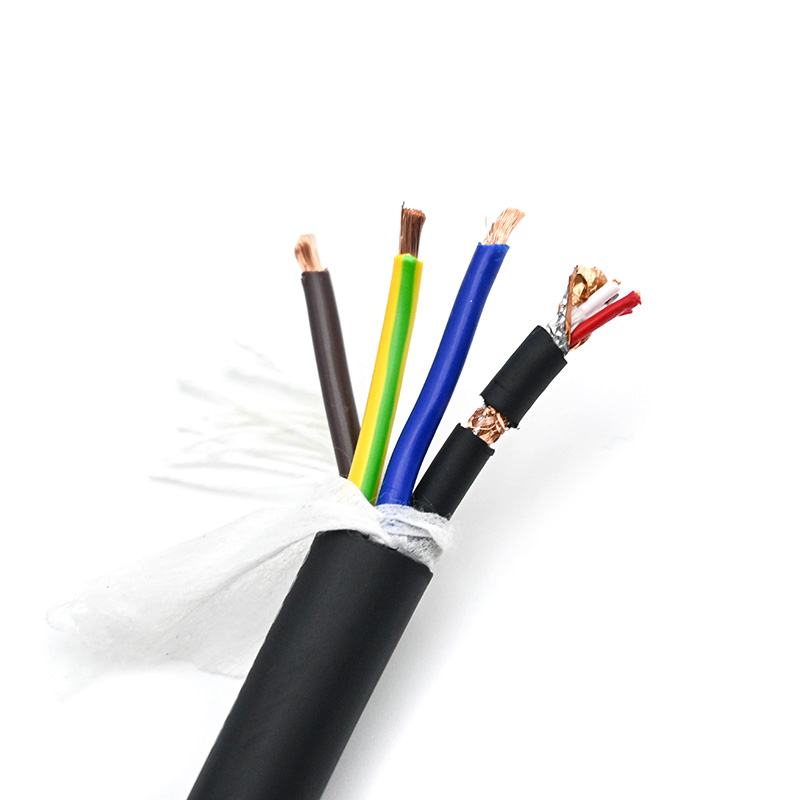

The tourycable DMX + Power Hybrid Cable combines a shielded control signal wire and the power supplier wire. The dmx cable is shielded by a copper braid and foil. It is qualifier for the use at indoor and outdoor installation. The dmx cable can also be used for transmission of audio signals.
IEC 60228
Conductor: Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-6
Signal Cable Insulation: PE
Signal Cable Shielding: Aluminium Foil + drain wire (16/0.15)
Signal Cable Structure: Twisted Conductor
Power Cable Size: 3×1.5mm², 3×2.5mm²; 12/3 14/3 16/3 awg
Sheath: High Flexible PVC at low temperature
Termperature Range: -30 ºC to +70 ºC
Characteristic Impedance: 100-120 ohm
| Part Number | Cable OD mm | No. of Cores | Conductor Cross Sectional Area | Shielding |
| TR-503 | 11.8 | 3+2 | 3×1.5 + 1x2x0.25 | 128/0.1 Braid + Al Foil |
| TR-504 | 13.2 | 3+2 | 3×2.5 + 1x2x0.25 | 128/0.1 Braid + Al Foil |
