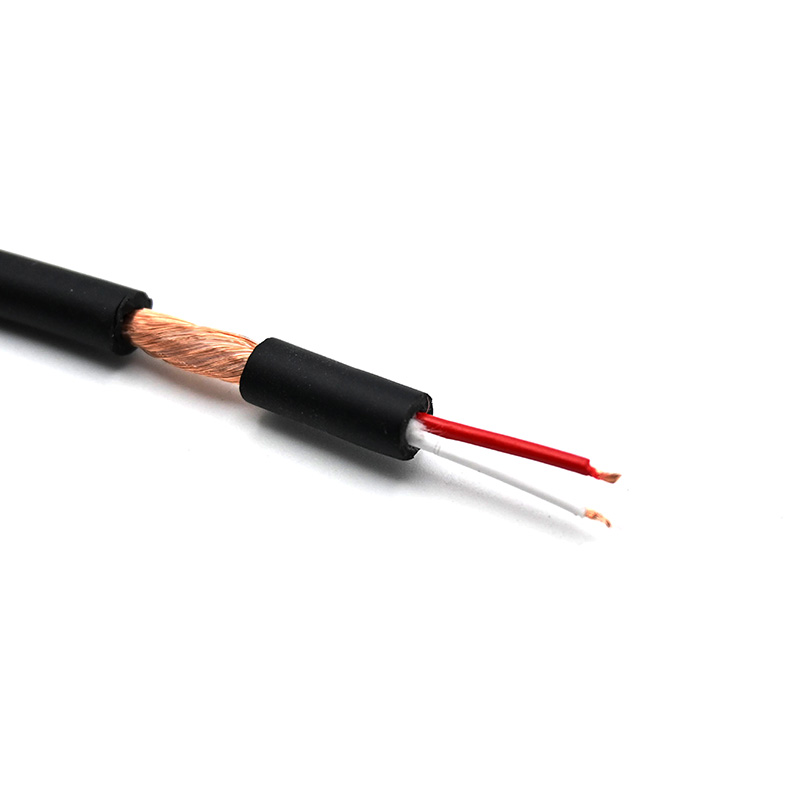

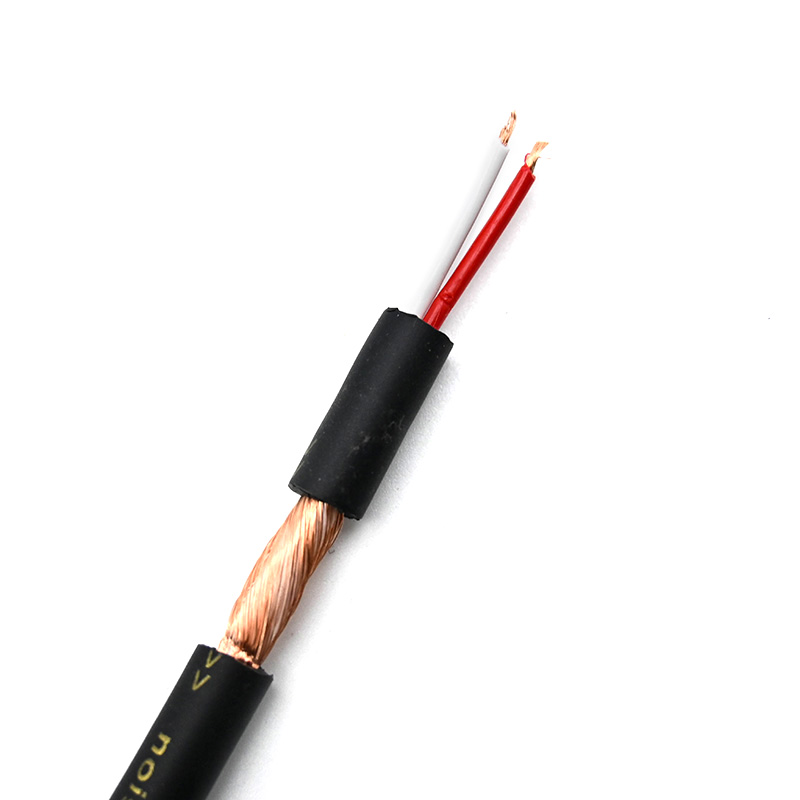

This double-shielded microphone XLR balanced audio cable is designed for professional stage and studio operations, as well as fixed installation.

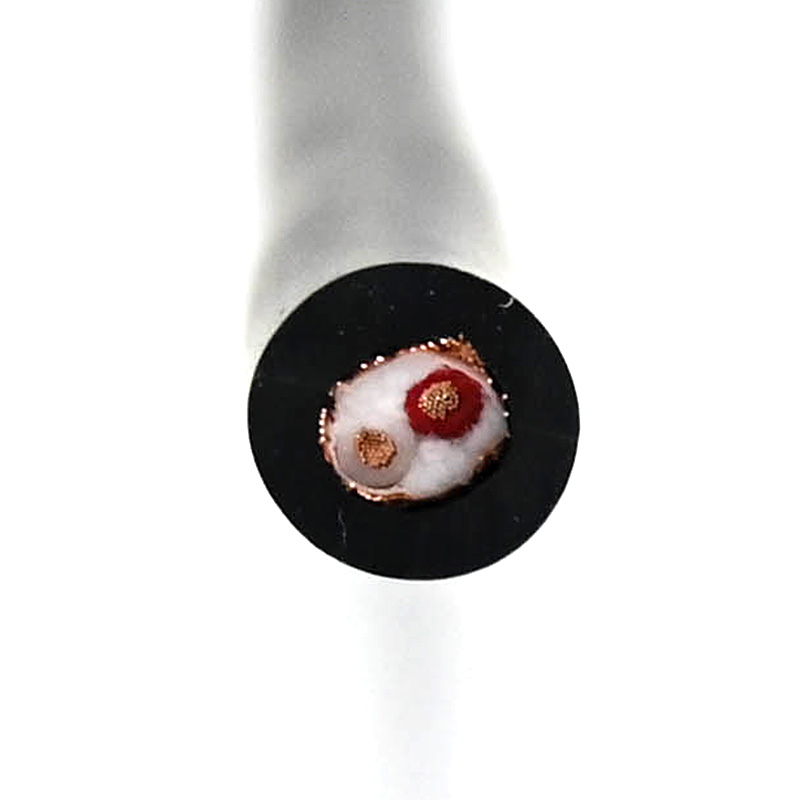

The cable shielding is 128/0.1 spiral shielding. Conductor size, 22awg (47/0.1).
IEC 60958
Conductor: Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-6
Insulation: PE

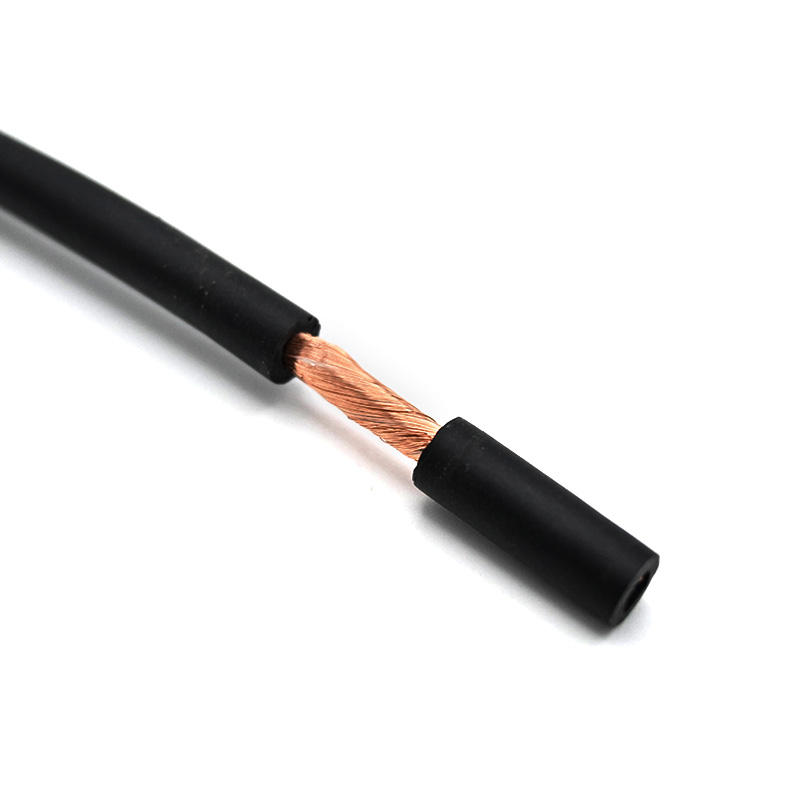

Shielding: Copper Spiral wrapped > 95% + Al foil
Sheath: PVC (LSZH)
Core Colors: Red and White
Termperature Range: -30 ºC to +70 ºC (PVC)
Conductor Resistance, max : 75 Ohm/km
Insulation Resistance: 5 MOhm x km
| Part Number | Cable OD mm |
No. of Cores | Conductor Cross Sectional Area | Shielding | Applicaiton |
| TR-525 | 6.2 | 2 | 2x 47/0.1 | 128/0.1 Spiral+ Al Foil | Event Stage Audio and Lighting System Installation |
