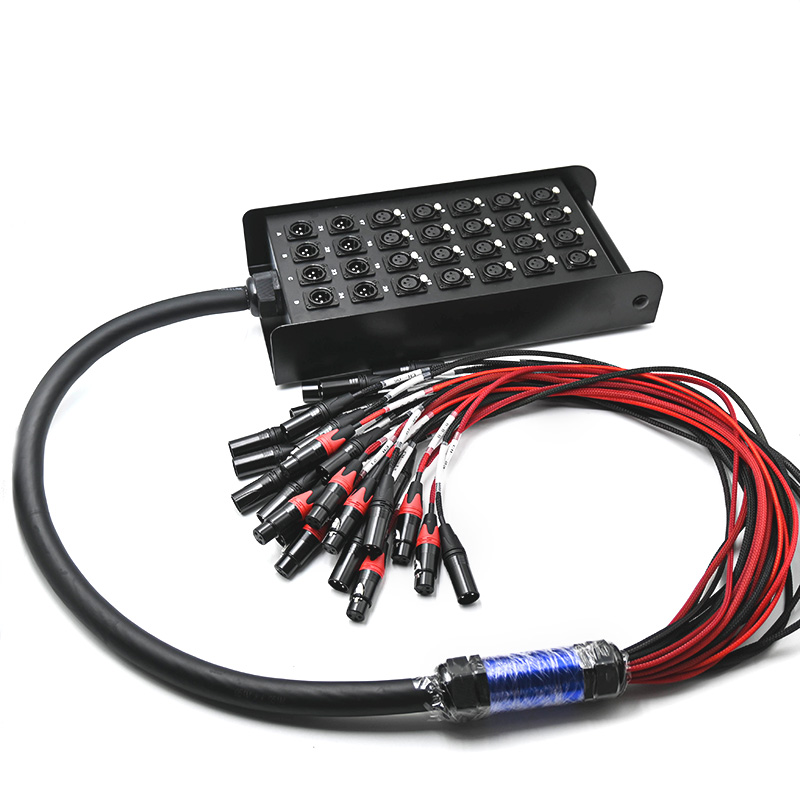

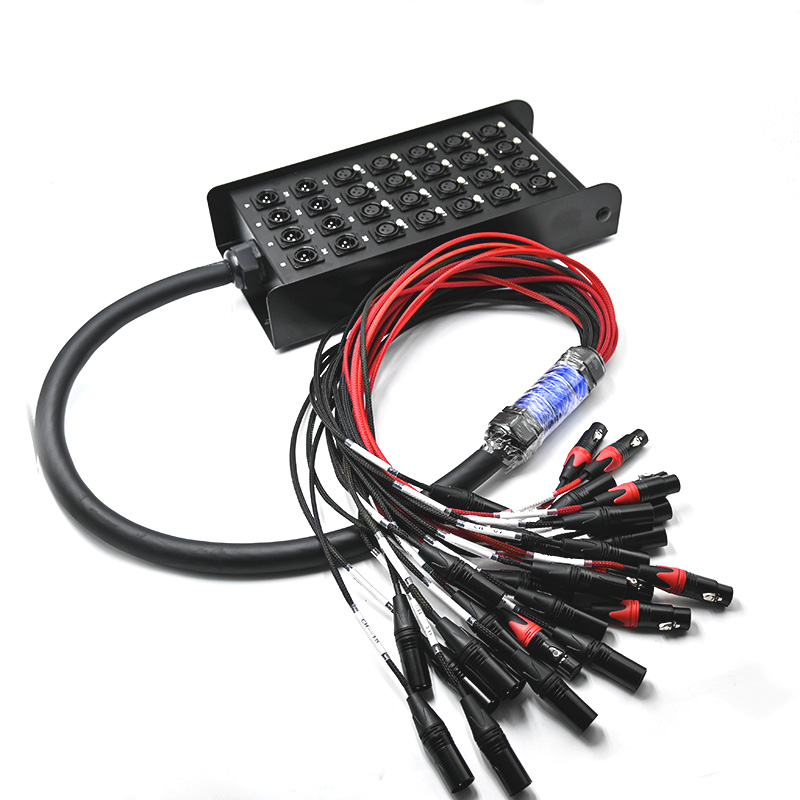

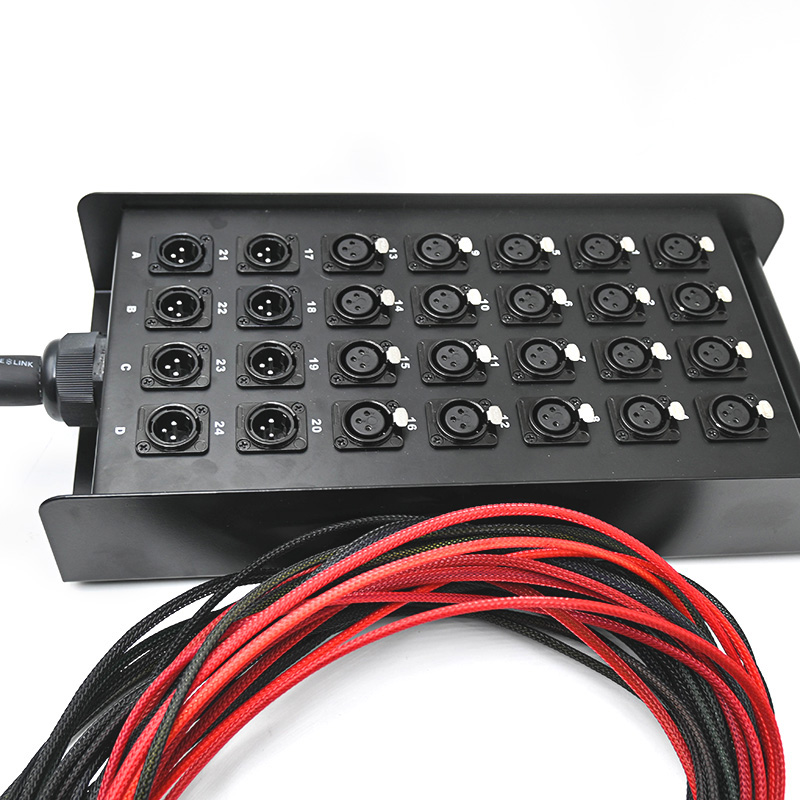

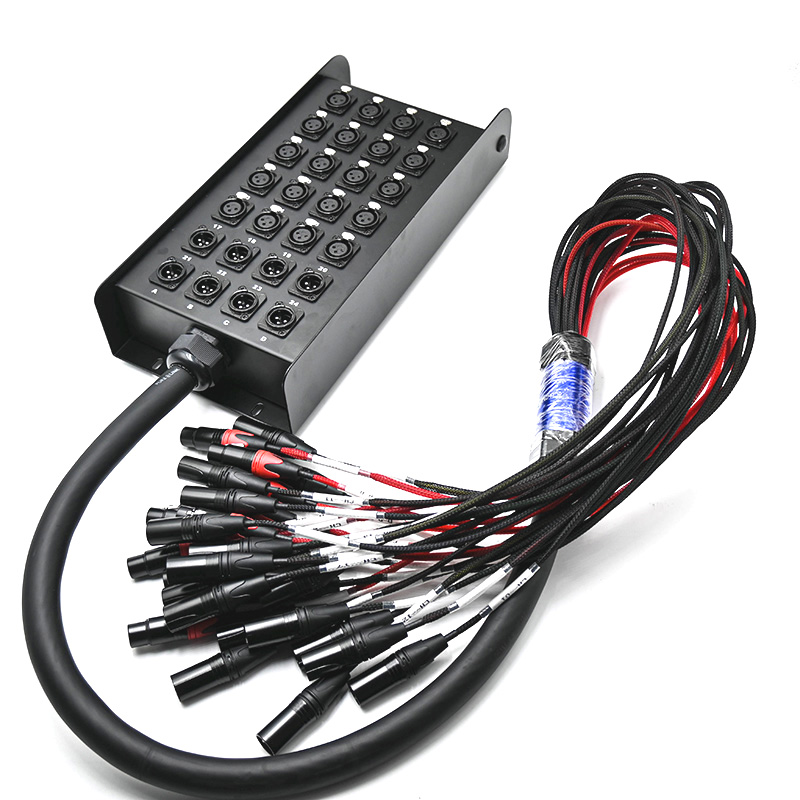

Tourycable’s Multi-channel XLR Stage Box with Cable is widely used in audio signal distro systems.
It combines a Multi-channel XLR Stage Box with 8/12/16/24/48 way xlr male cables. Out standard cable length is 3.5m.
Plug/end Terminal Side A:
Multi-Channel XLR Box
Plug/end Terminal Side B:
XLR Male/Female
Standard:
IEC 60799
Type:
Audio Cable
Number of Channel:
8/12/16/20/24/28/32/36/40/48
Contact Surface:
Gold
Cable Size:
26awg
Conductor Details:
20/0.1
Conductor Standard:
IEC 60227 Class 6
Insulation:
PE
Shielding:
Drain Wire 7/0.15 + Aluminium Foil
Sheath:
Special PVC
| XLR Box with Cable Type | |||
| 4 Return | 8 Return | ||
| Channel | Input | Channel | Input |
| 8 | 8 | — | — |
| 12 | 8 | — | — |
| 16 | 12 | 16 | 8 |
| 20 | 16 | 20 | 12 |
| 24 | 20 | 24 | 16 |
| 28 | 24 | 28 | 20 |
| 32 | 28 | 32 | 24 |
| 36 | 32 | 36 | 28 |
| 40 | 36 | 40 | 32 |
