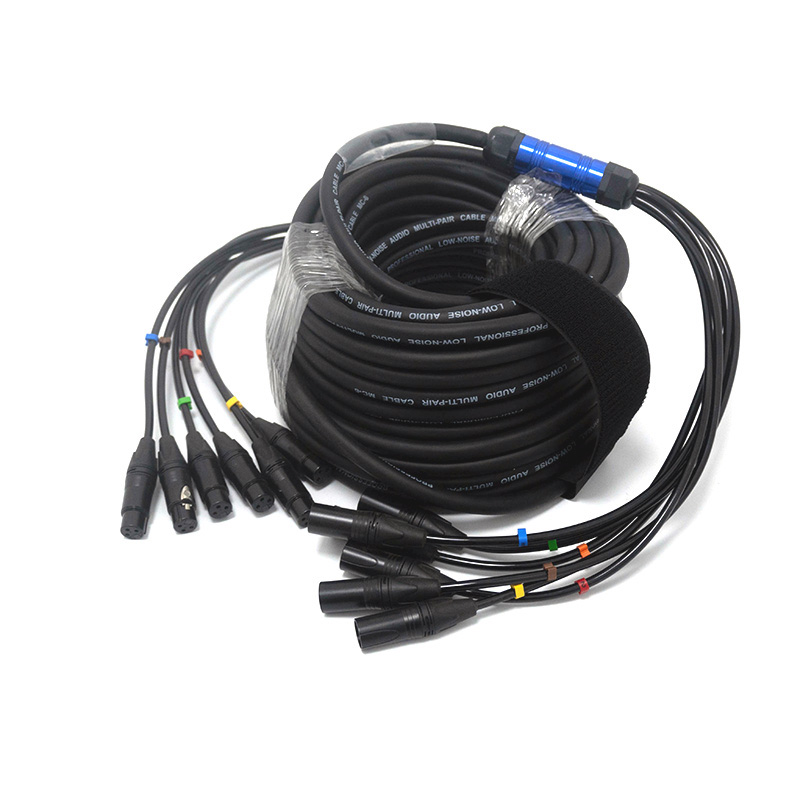

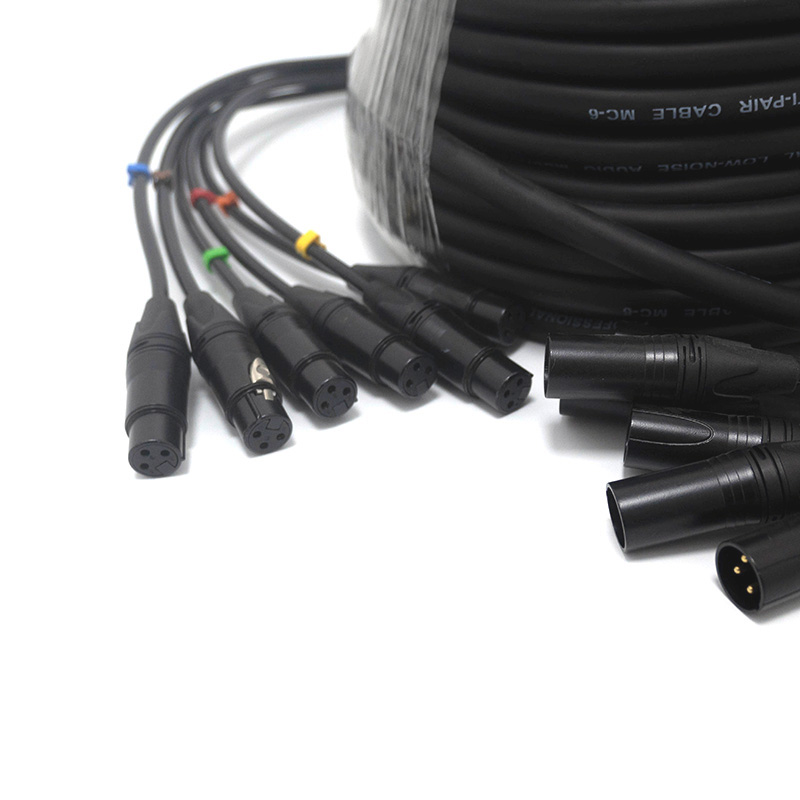

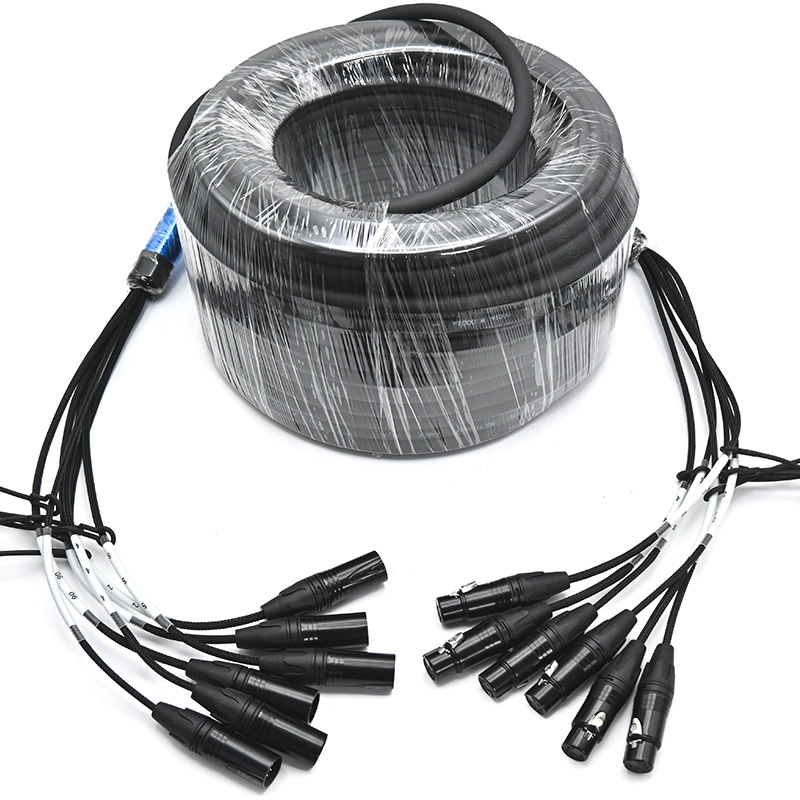

This multi-channel XLR cable loom comes with velcro and number or color coded for easy organisation. It can be 4-channel, 8-channel, 12-channel 16-channel or 24-channel. This product is widely used in professional audio systems, such as connections between mixers, microphones, and other equipment.
Plug/end Terminal Side A:
4x 8x 12x 16x 24x XLR Connector Male
Plug/end Terminal Side B:
4x 8x 12x 16x 24x XLR Connector Female
Standard:
IEC 60799
Type:
Microphone Cable
Number of Pins:
3 Pin / 5 Pin
Channel Mark:
Color Ring on Connector or Number Code heat shrink
Cable Size:
26awg
Conductor Details:
20/0.1
Conductor Standard:
IEC 60227 Class 6
Insulation:
PE
Shielding:
Drain Wire 7/0.15 + Aluminium Foil
Sheath:
Special PVC + Neatly Wrapped End
