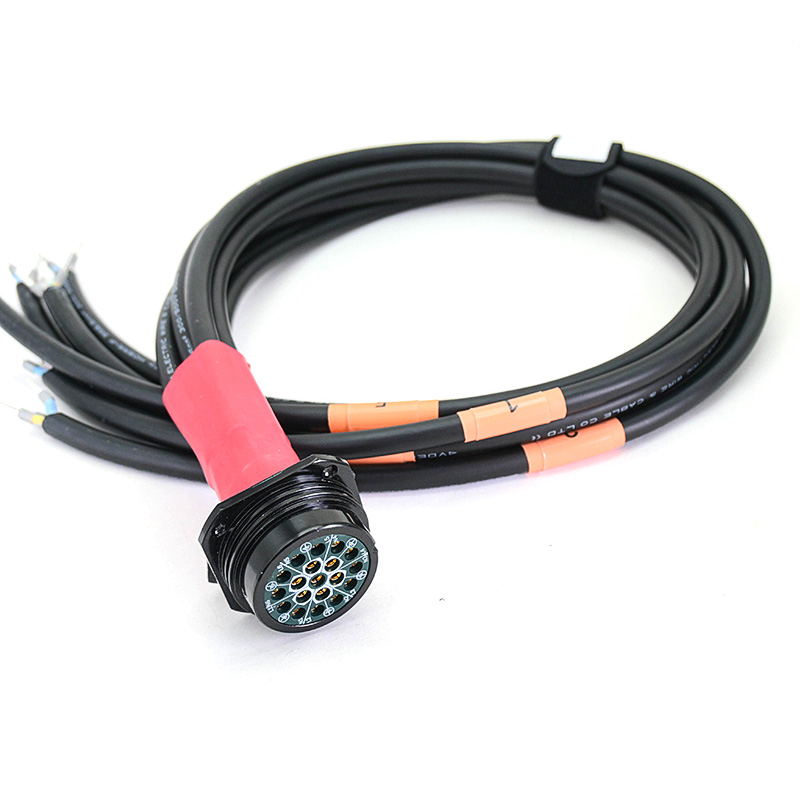

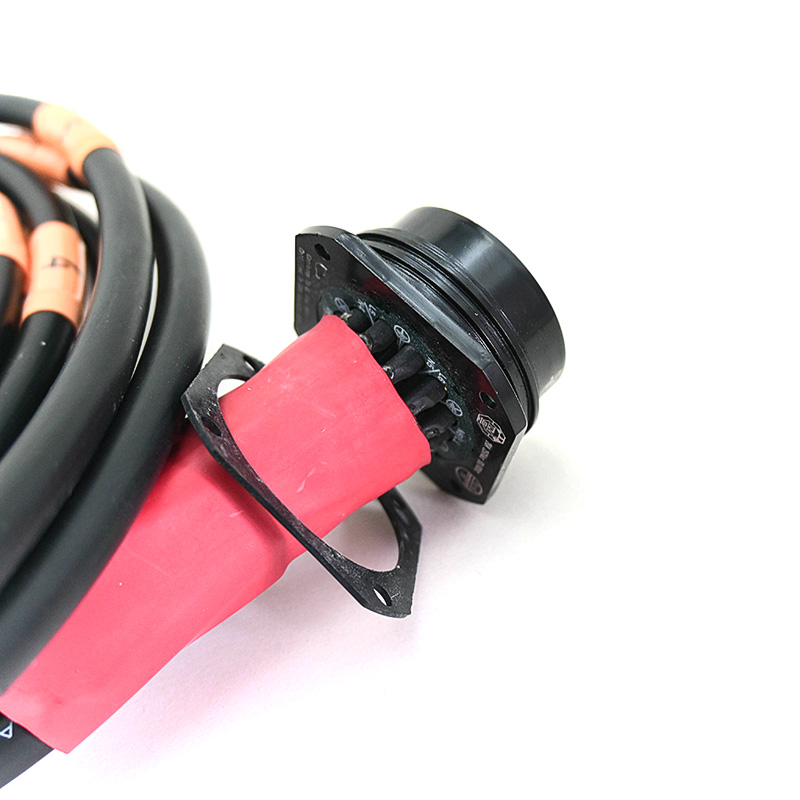

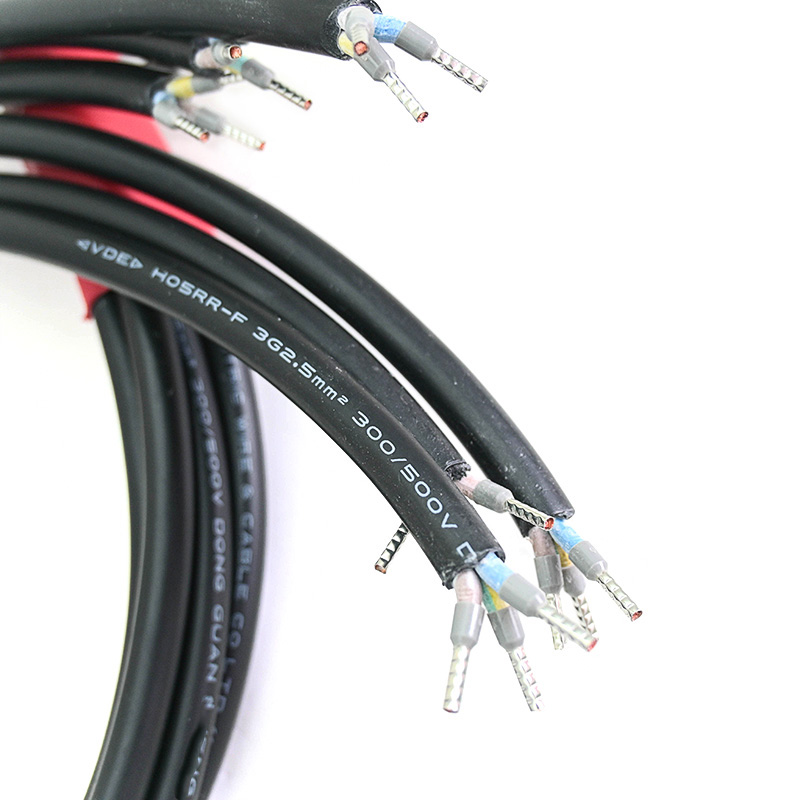

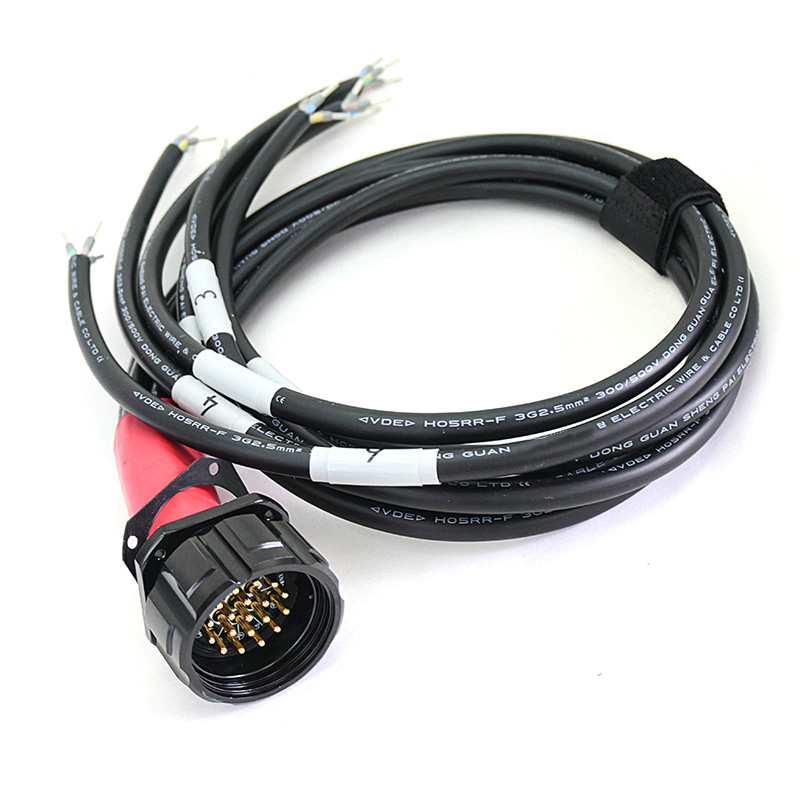

This socapex breakout breakin panel mount cable is combine with a male/female socapex chassis and 6 pcs cables with Striped end. It is used for lighting power distro. Normally, cable length range from 1m to 1.5m.
Plug/end Terminal Side A:
Plug/end Terminal Side B:
Standard
Type
Contact Surface:
IP Rated:
Approval:
Standard Length:
Cable Size:
Current Rated
Cable Type:
19 Pin Socapex Chassis Male/Female
Striped
IEC 60799
3 Phase Main Power Cable
Gold Plated
IP67 when mated
CE, RoHS, VDE, TUV
1m-3m
1.5mm², 2.5mm²; 12awg, 14awg
16amp or 20amp
H05VV5-F, H07RN-F; SJTOW, SJOOW
