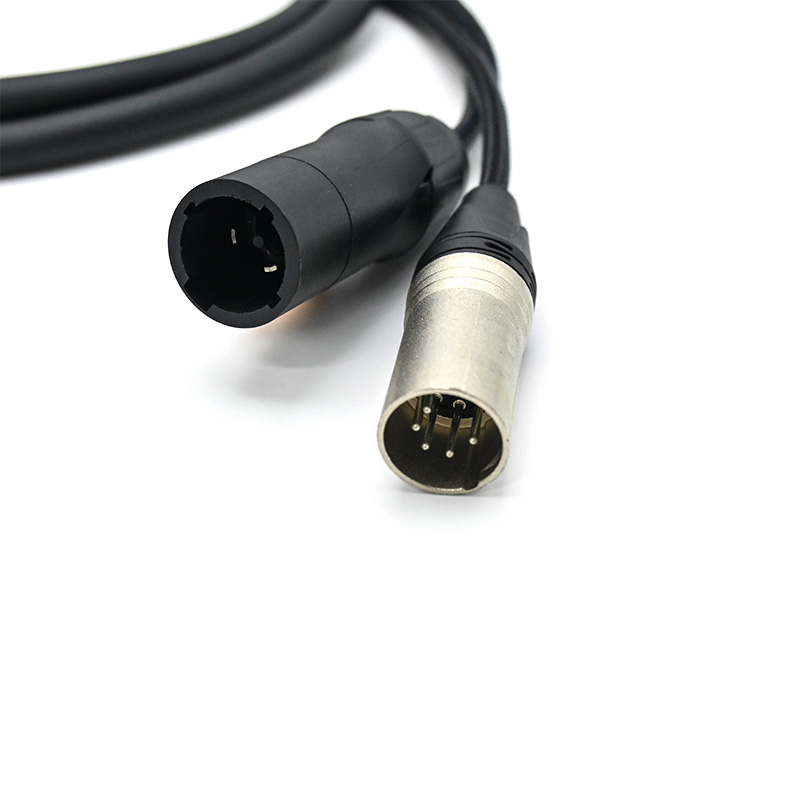

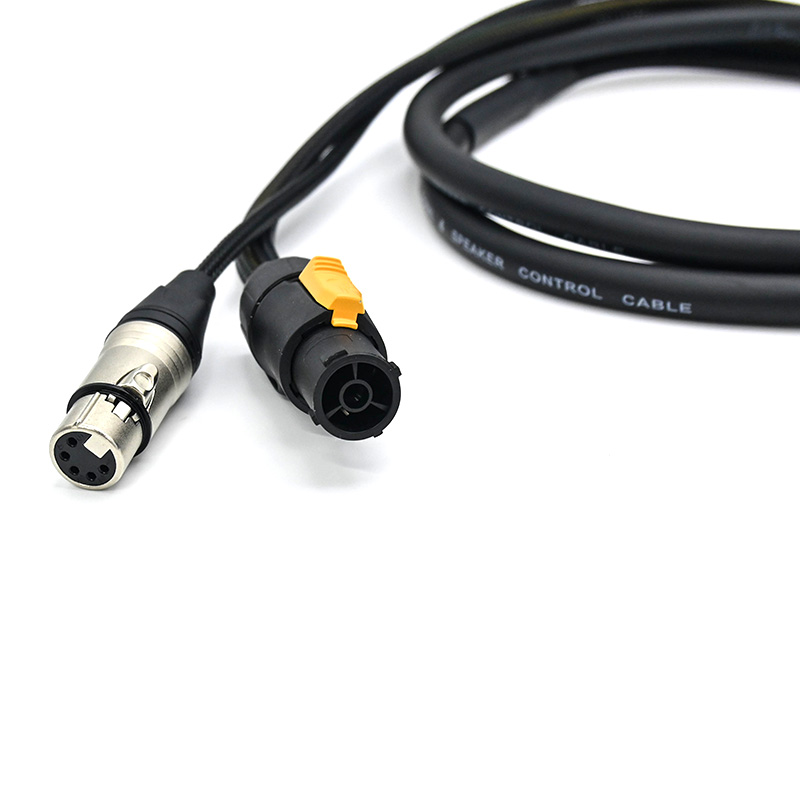

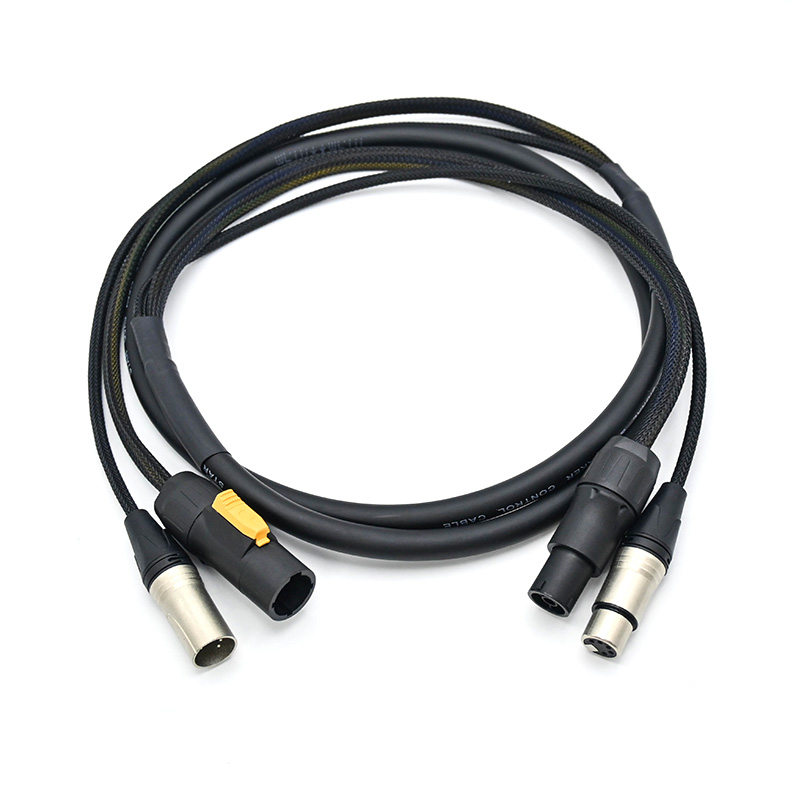

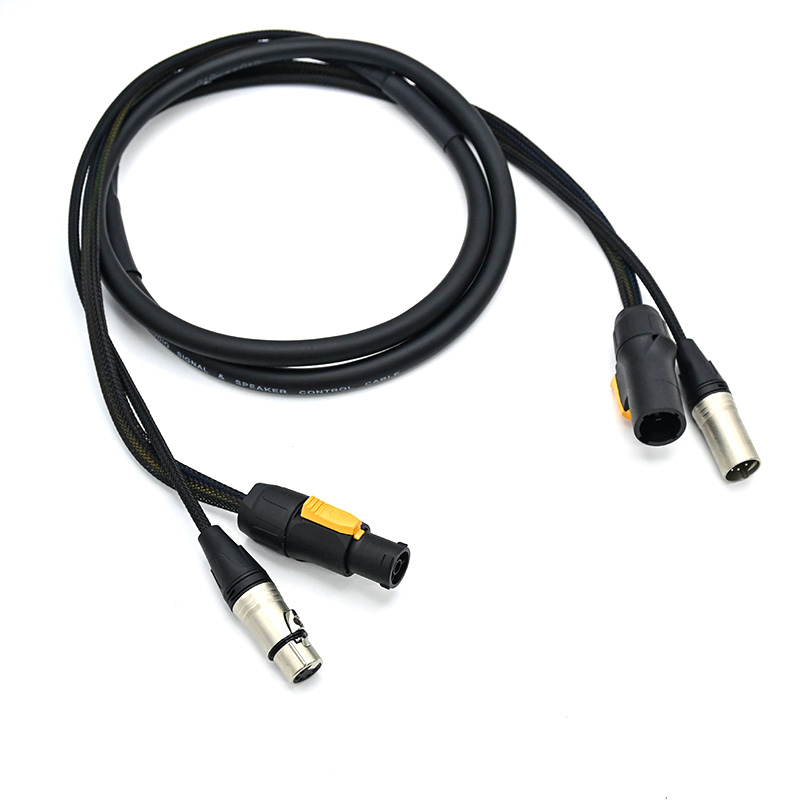

As an upgraded version of the standard Powercon DMX combo cable, this model features IP65-rated Powercon connectors and 5-pin DMX connectors. This ensures reliable stage light and audio performance even in harsh outdoor environments.
Plug/end Terminal Side A:
Plug/end Terminal Side B:
Standard:
IP Rated:
Type:
Characteristic Impedance:
Approval:
Operation Temperature:
Standard Length:
Power Cable Size:
Signal Cable Size:
Signal Cable Shield:
Current Rated:
Cable Type:
Powercon True Male+5 Pin DMX male
Powercon True Female+5 Pin DMX female
IEC 60799
IP65
Outdoor DMX Power Hybrid Cable
110 Ohm
CE, RoHS, VDE
-25℃~75℃
1m, 1.5m, 2m, 3m, 5m, 8m, 10m
3×1.5mm², 3×2.5mm²; 12/3 14/3 16/3 awg
0.3mm², 0.5mm²; 20awg, 22awg
Double shielded, foil+braid
16amp or 20amp
H05VV-F, H07RN-F; SJTOW, SJOOW
