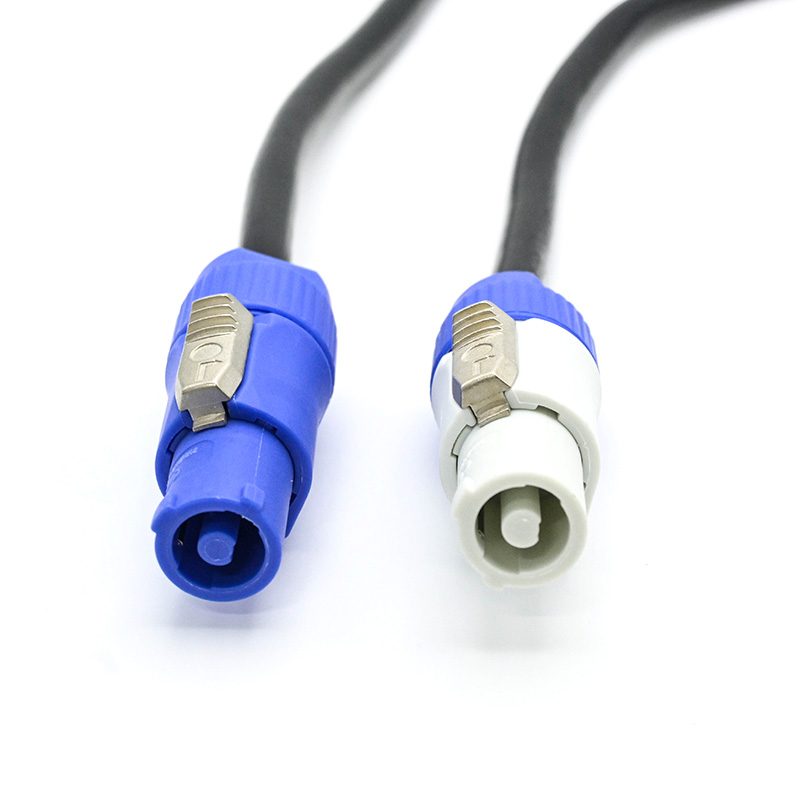

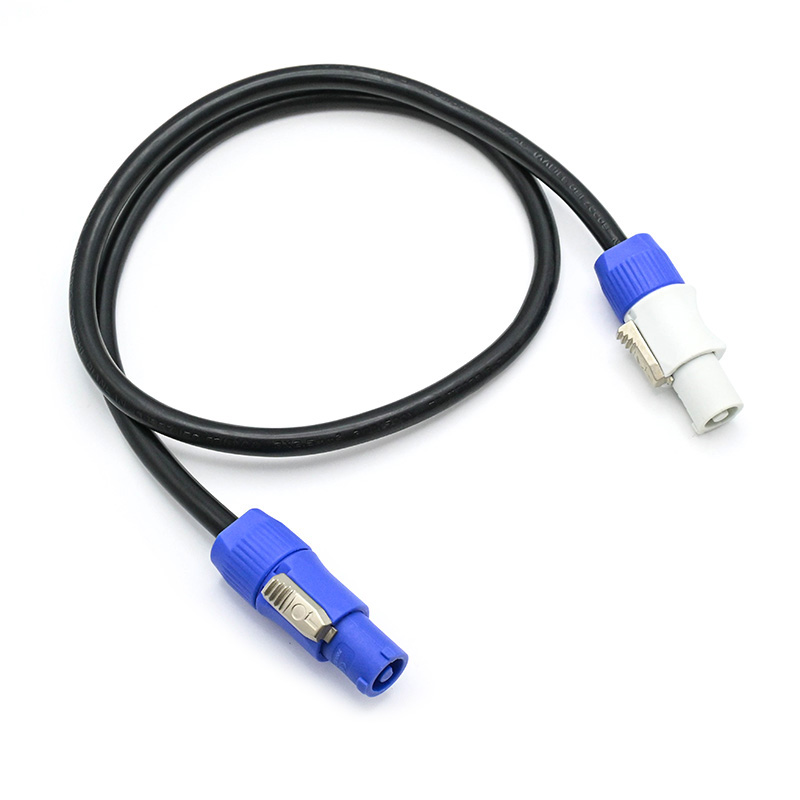

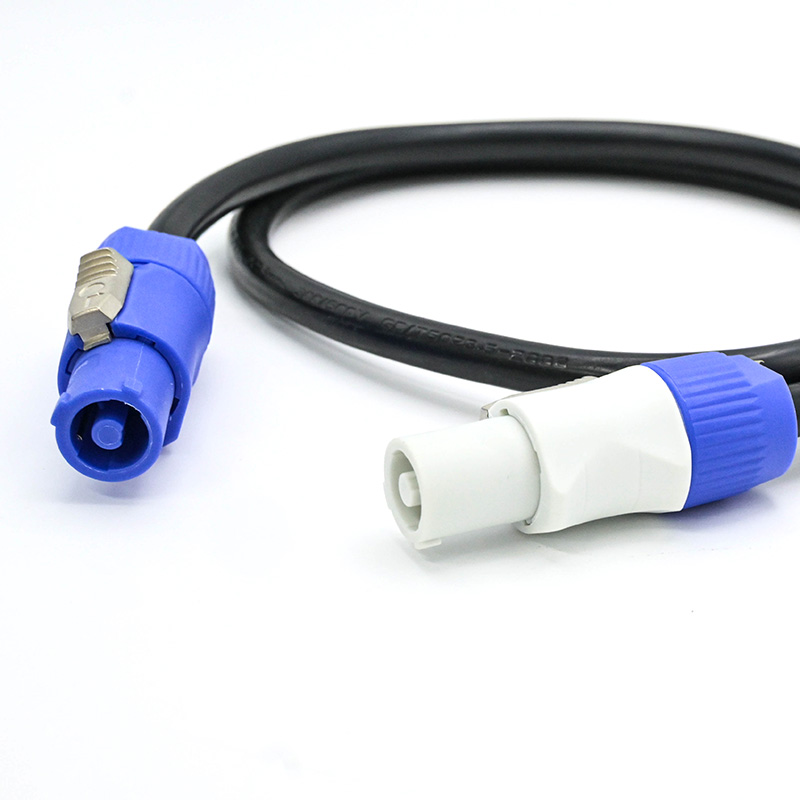

This powercon cable is standard power cord for professional stage equipments, like speaker, move head lighting, led screen… It is not waterproof so you’d better use this cable indoor. Blue: power in. White: power out. Current Rate: 16amp (1.5mm²) or 20amp (2.5mm²).
Plug/end Terminal Side A:
Plug/end Terminal Side B:
Standard
Type
Number of Conductors:
Approval:
Standard Length:
Power Cable Size:
Current Rated
Cable Type:
Powercon Connector Blue
Powercon Connector White
IEC 60799
AC Main
3 Conductor
CE, RoHS, VDE
1m, 1.5m, 2m, 3m, 5m, 8m, 10m
1.5mm², 2.5mm²; 12awg, 14awg
16amp or 20amp
H05VV-F, H07RN-F; SJTOW, SJOOW
| Connector Type | Application | Cable Core | Conductor Size |
| 25A Standard 4 Pins | Pro Audio | 2C | 6mm² |
| 4mm² | |||
| 12awg | |||
| 2.5mm² | |||
| Musical Instrument | 14awg | ||
| 1.5mm² | |||
| Pro Audio | 4C | 6mm² | |
| 4mm² | |||
| 12awg | |||
| 2.5mm² | |||
| Musical Instrument | 14awg | ||
| 1.5mm² | |||
| 25A Standard 8 Pins | Pro Audio | 6C | 4mm² |
| 2.5mm² | |||
| 8C | 4mm² | ||
| 2.5mm² |
| Connector Type | Application | Cable Core | Conductor Size |
| 25A Strong 4 Pins | Pro Audio | 2C | 2.5mm² |
| 4C | |||
| Musical Instrument | 2C | 14awg | |
| 4C | |||
| 25A Waterproof 4 Pins | Pro Audio | 2C | 2.5mm² |
| 4C | |||
| Musical Instrument | 2C | 14awg | |
| 4C |
