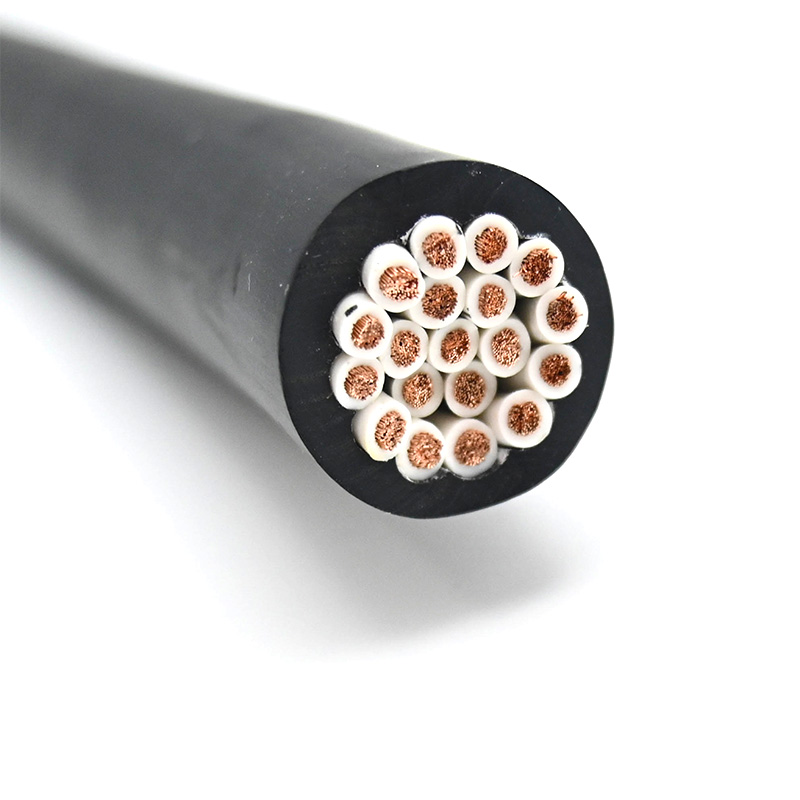

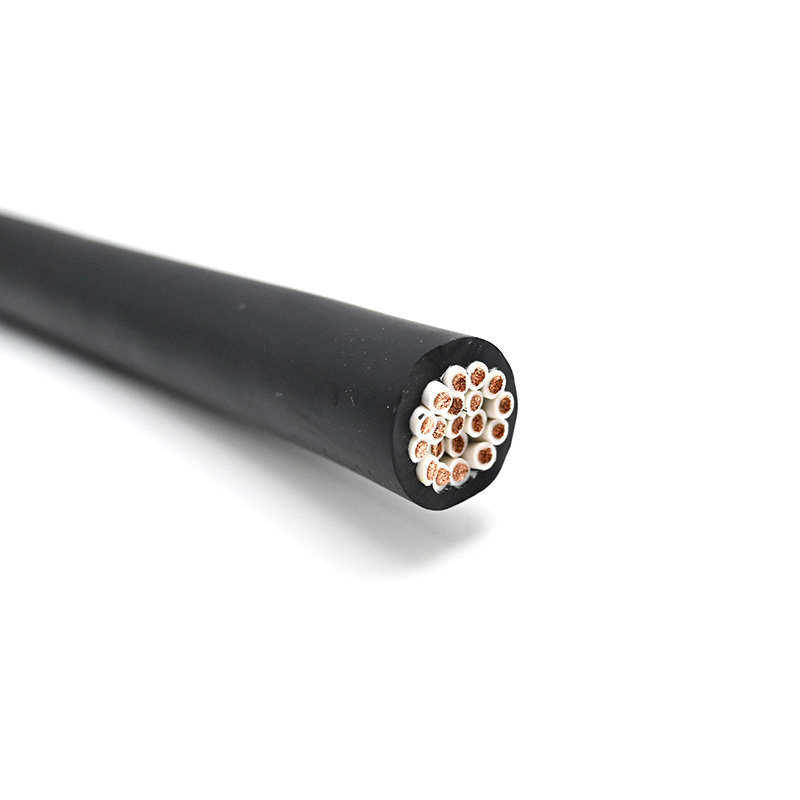

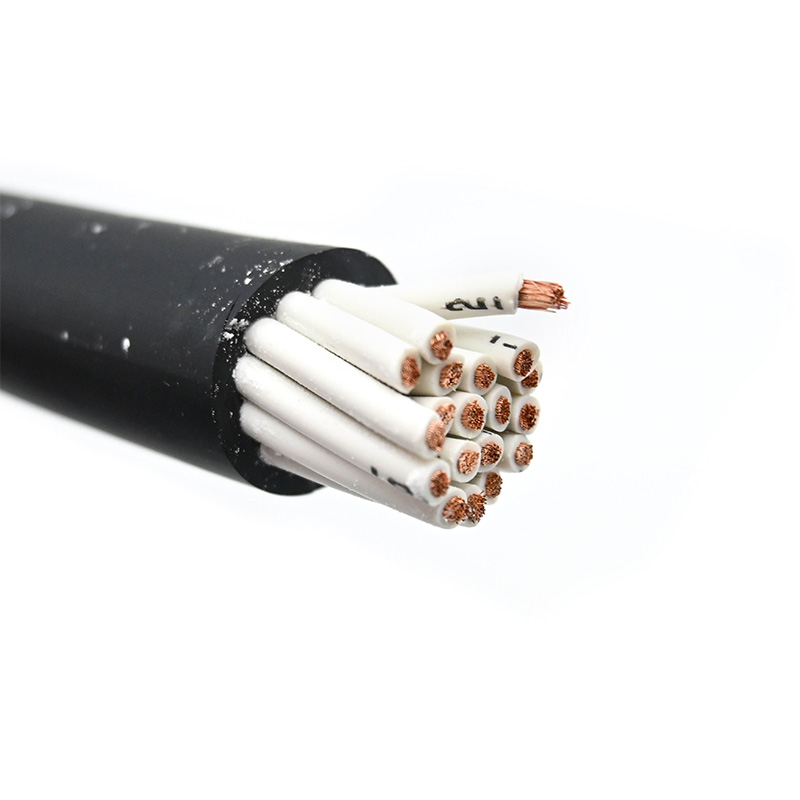

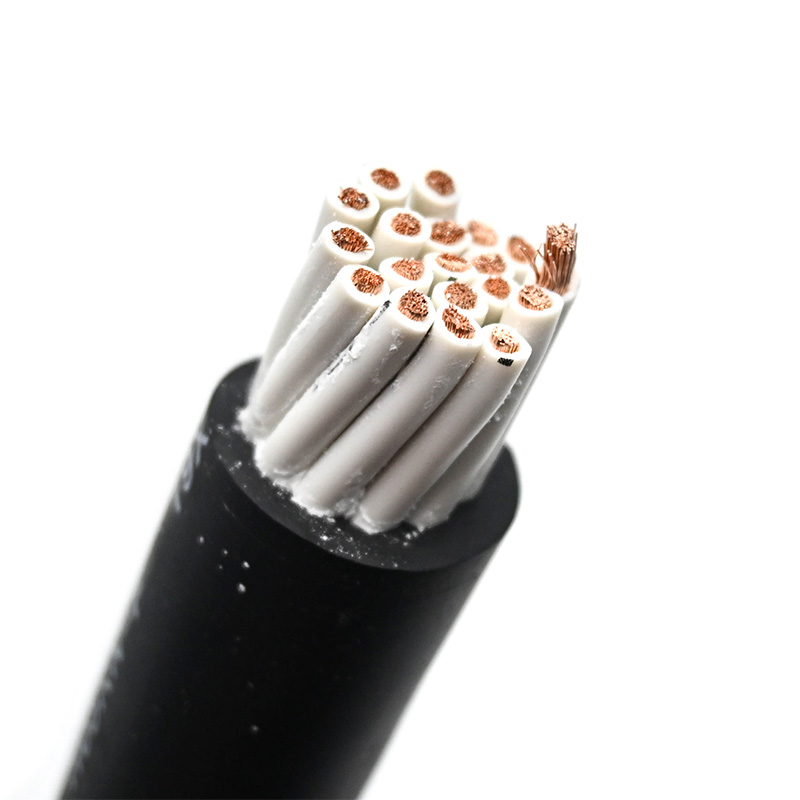

This 19 Core power cable is used for the multipin socapex cable. It is a 19 conductor cable designed for 6 way ac power channel. It also feature with flexible and potable which is suitable for the touring event stage lighting power distribution.
All requirements and tests methods acc to DIN VDE 0285-525-2-51/ en 50525-2-51
Conductor: Fine Bare Copper Strands acc to IEC 60228, BS 6360, VDE 0295 Class-5 or Class-6
Insulation: Special PVC Compound acc to VDE 0207-363-3 / EN 50363-3
Sheath: Special PVC Compound acc to VDE 0207-363-4-1 / EN 50363-4-1
Flexing Temperature Range: -15 ºC to +80 ºC
Static Termperature Range: -40 ºC to +80 ºC
Minimum Bending Radius Flexing: 7.5 x Overall diameter
Minimum Bending Radius Fix: 4 x Overall diameter
Working Voltage:Â 300/500V
Test Voltage: 4000V
Extensively oil resistant, oil/chemical resistance
Conditional drag chain compatible
Conditional suitability for torsion
