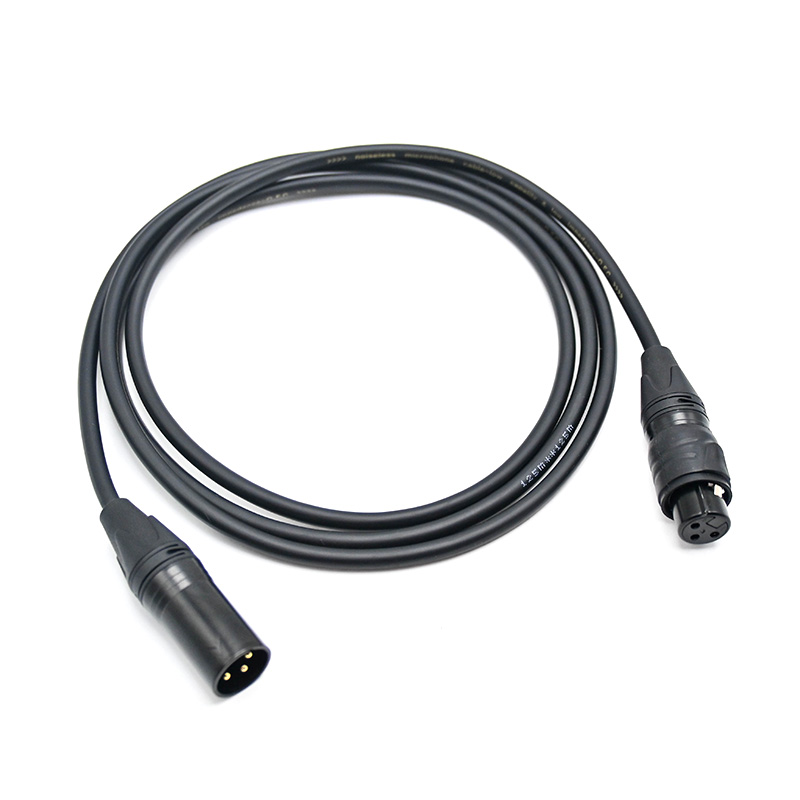

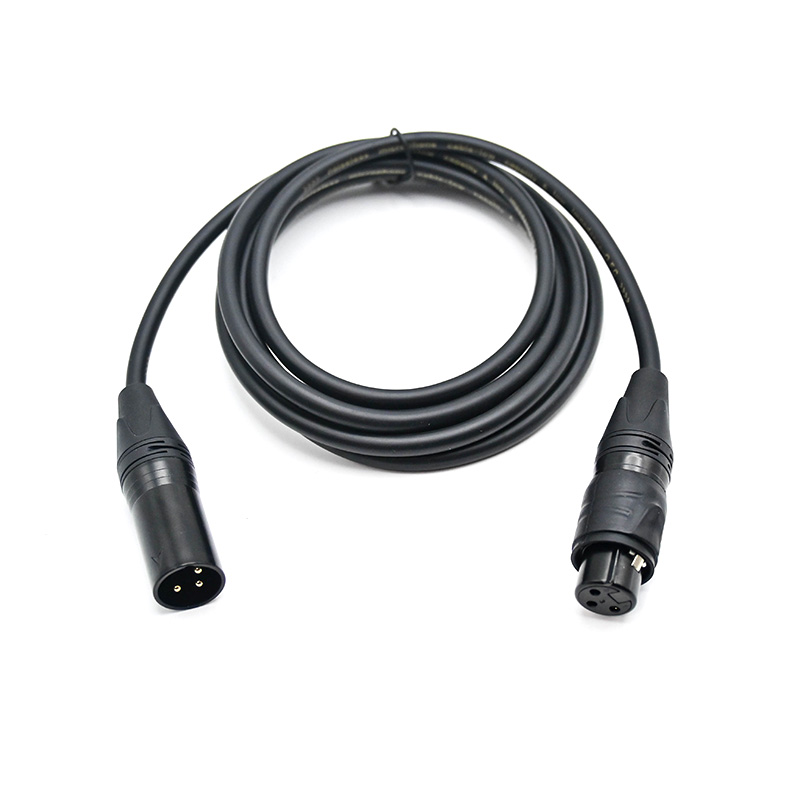

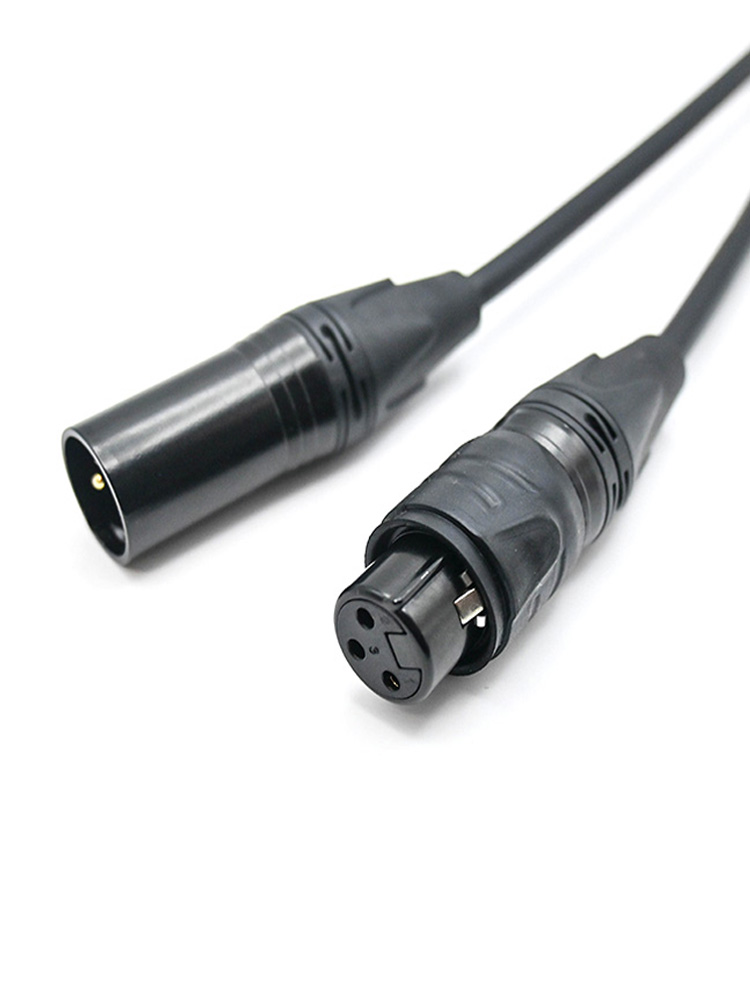

This IP65 DMX XLR 3/5 pin cable can be used for professional lighting equipment with 3/5 pin dmx interface or microphone connection. The dmx cable impedance can be 110 ohm(option).
Plug/end Terminal Side A:
Plug/end Terminal Side B:
Standard
Type
IP Rated
Characteristic Impedance
Number of Pins:
Contact Surface
Operation Temperature
Approval:
Standard Length:
Signal Cable Size:
Signal Cable Shield:
Cable Type:
DMX Connector Male
DMX Connector Female
IEC 60799
DMX512 & AES/EBU Patch Cable
IP65
100-120 Ohm (110 Ohm option)
3 pin or 5 pin
Sliver or Gold
-25℃~75℃
CE, RoHS, VDE
1m, 1.5m, 2m, 3m, 5m, 8m, 10m
0.3mm², 0.5mm²; 20awg, 22awg
Double shielded, foil+braid
PVC/LSZH/PUR Shield Cables
